POLYCAST DG0641D Class D Slotted Ductile Iron Grate 6" x 24" (Nominal)

POLYCAST DG0641D Class D Slotted Ductile Iron Grate 6" x 24" (Nominal)

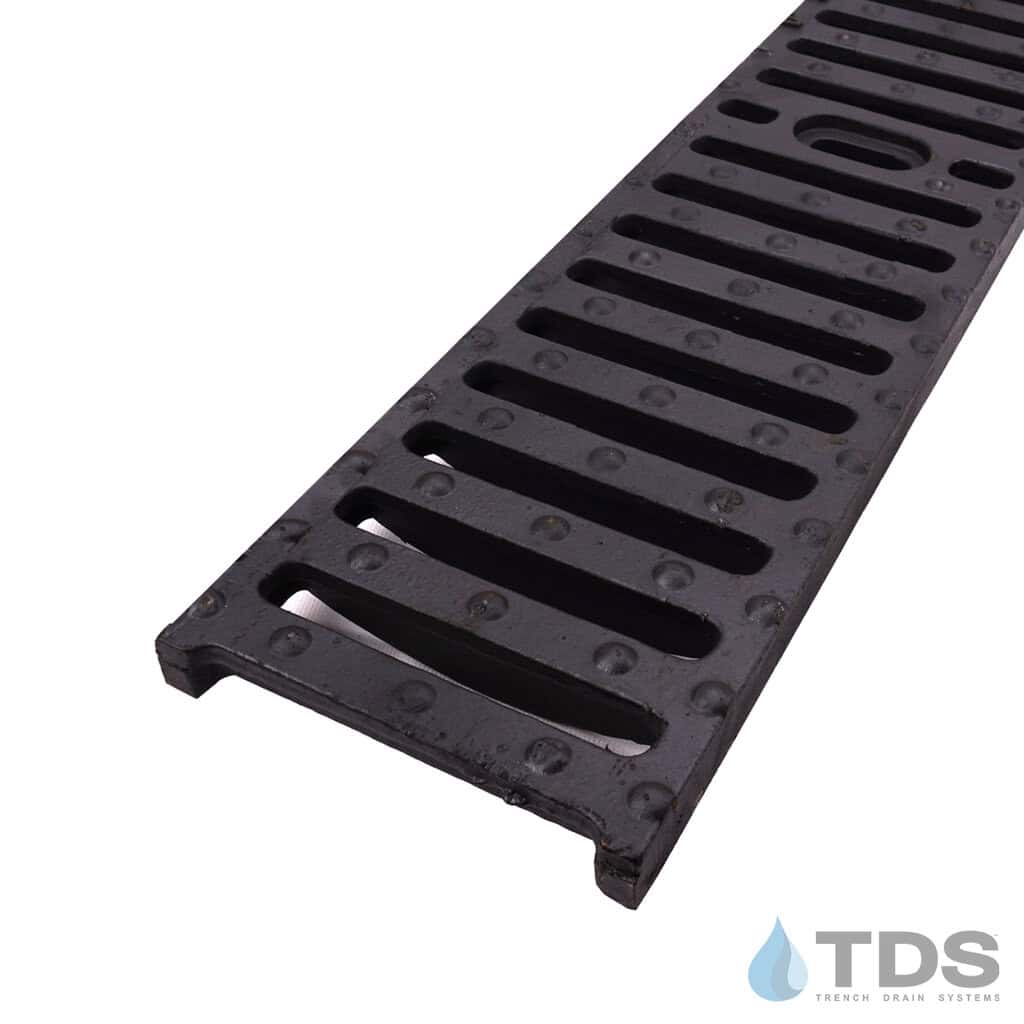

  • DG0641D Polycast Ductile Iron Slotted Grate

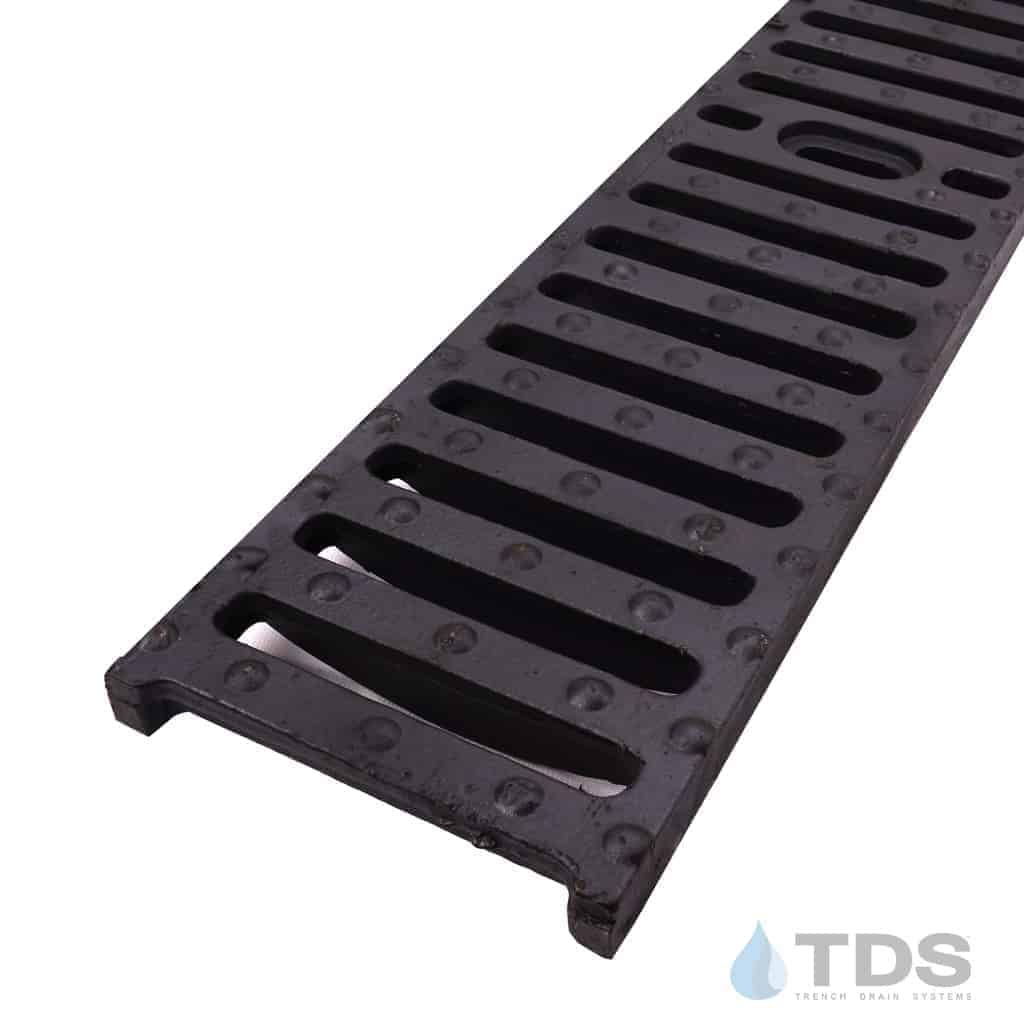

  • DG0641D Polycast Ductile Iron Slotted Grate
  • Hubbell POLYCAST DG0641D ductile iron Class D slotted grate
1 3

Trench Drain Grates

DG0641D

$44.74 USD
$44.74 USD $44.74 USD
Sale Sold out
View full details

Additional Information

  • Grate Width: 5 inch
  • Grate Thickness:
  • Product Type:
  • Grate Material / Color / Finish:
  • Manufacturer: POLYCAST
  • System: POLYCAST 500, POLYCAST 600, POLYCAST 700, SS 600
  • Grate Load Class: Class D
  • Grate Pattern:
  • Grate Pattern Style:
  • Channel Material:
  • Frame/Edging:
  • Application:

Description

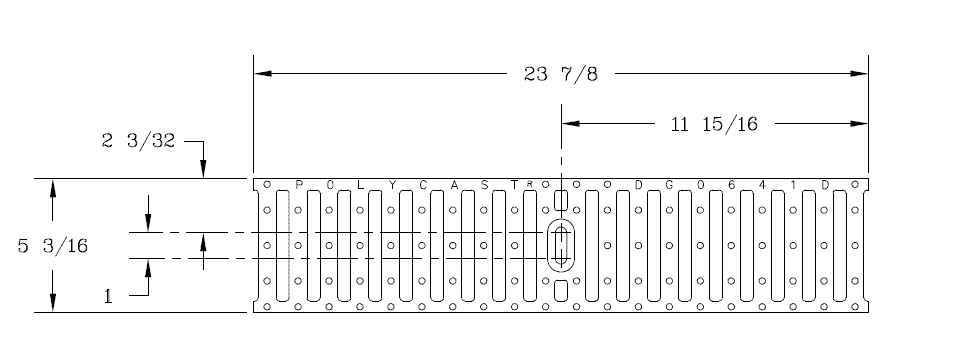

Actual Dimensions: 5 3/16″ x 23 7/8″ x 3/4″
Slot size: 0.5″ x 4.3″
Large project? Request a Quote

DG0641D - Heavy Duty slotted cast ductile iron grate for the polymer concrete POLYCAST® 500, 600 and 700 Series trench drain systems by Hubbell. Replaces Part# DG0641D. Painted black.

  • Slot size: 0.5" x 4.3"
  • Grate Actual Dimensions: 23-7/8" L x 5-3/16" W
  • Load Class D
  • Load Class E - when mounted in Duraguard HDPE frame
  • Load Class F - when mounted in Hardnose iron frame

Locking device sold separately. Click below on the system for the related locking device:

POLYCAST® 600 locking devices for DG0641D
POLYCAST® 700 locking devices for DG0641D
Specification Sheet for DG0641D
