POLYCAST DG0646R Class C ADA Compliant Perforated Reinforced Galvanized 6" x 48" Grate
POLYCAST DG0646R Class C ADA Compliant Perforated Reinforced Galvanized 6" x 48" Grate
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 5.25" for Hubbell Polycast
- Grate Height: 0.75"
- Weight: 13.0 lb
- Grate Material / Color / Finish: Galvanized Steel
- Manufacturer: Hubbell - POLYCAST
- System: POLYCAST 500, POLYCAST 600, POLYCAST 700
- Grate Load Class: Class C
- Channel Material: Polymer Concrete - Polyester, Polymer Concrete - Vinyl Ester
- Application: Residential, General Purpose Drainage - Interior, General Purpose Drainage - External
Description

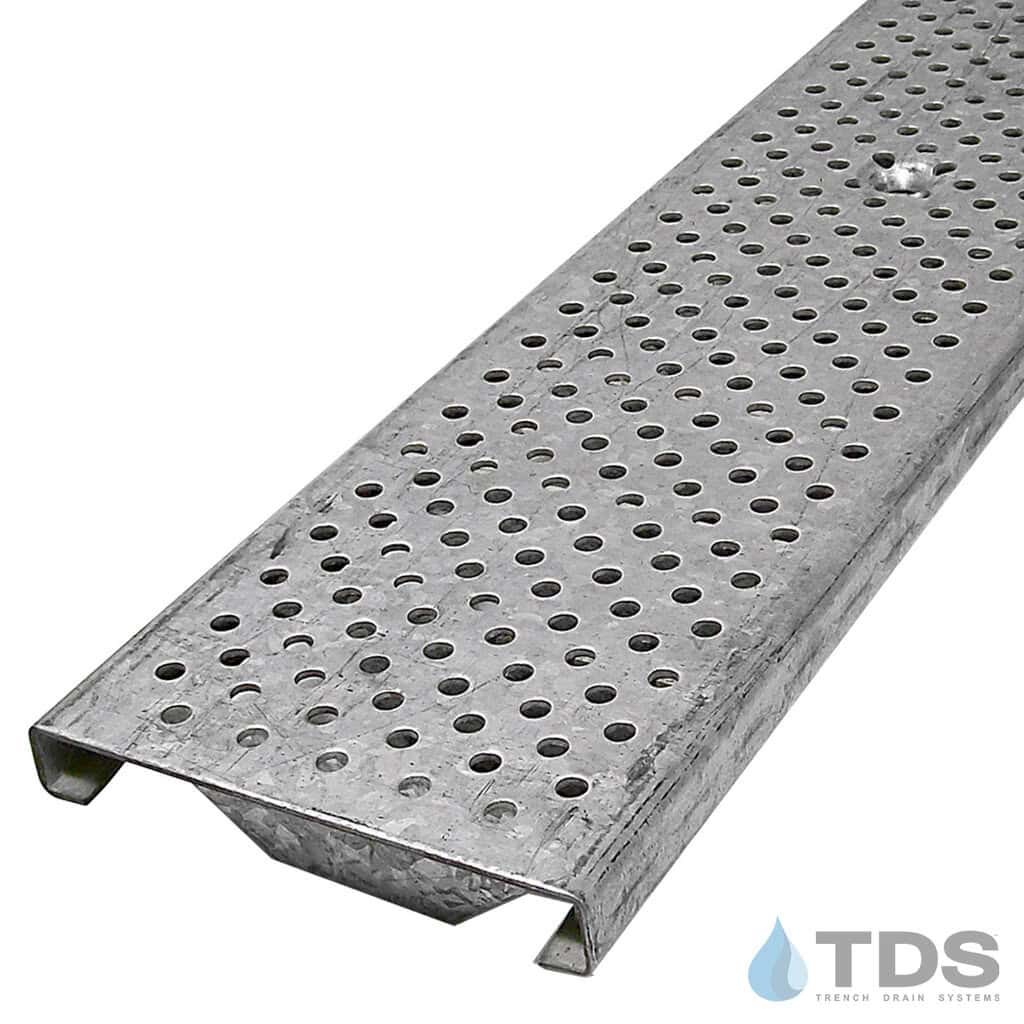

Galvanized reinforced perforated ADA & Heelproof grate.
Actual Dimensions: 5.12″ x 47.81″ x .75 (1.50 w/fin)

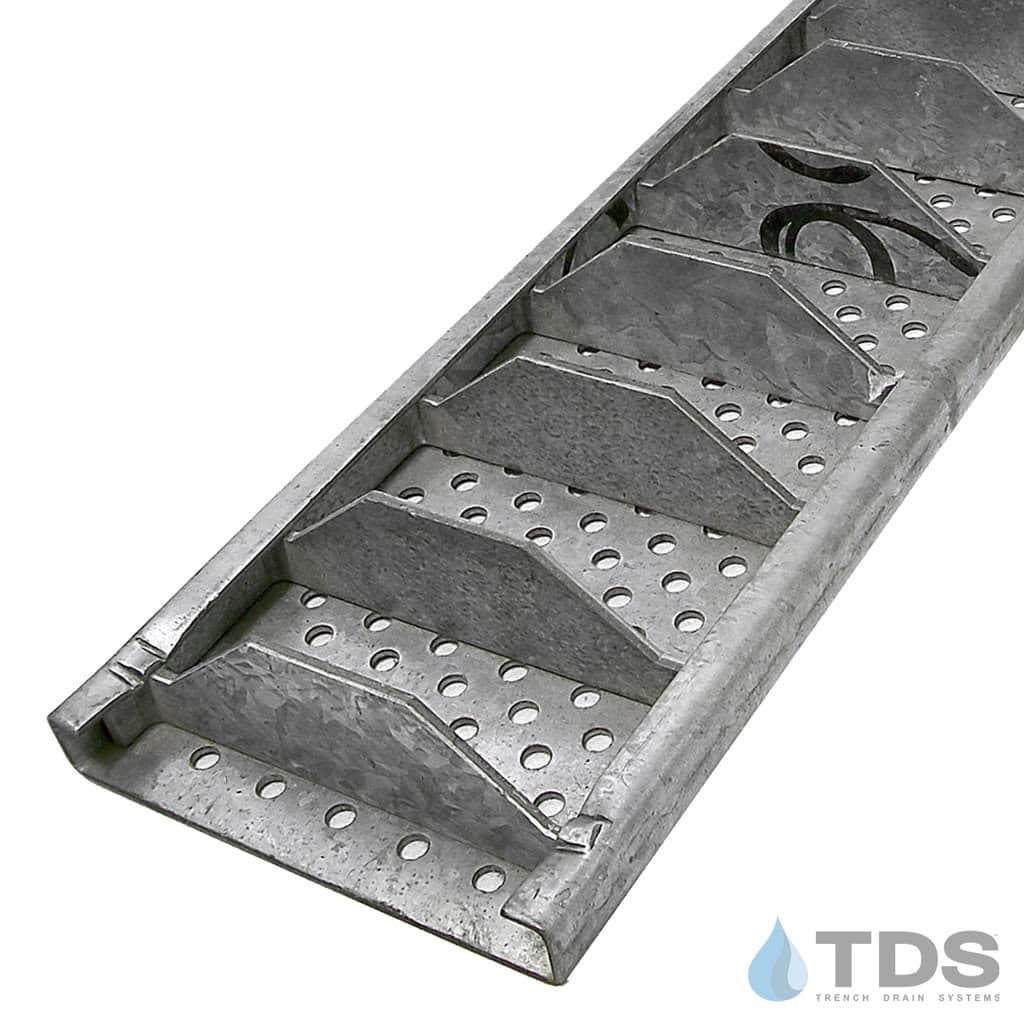

DG0646R Galvanized steel perforated reinforced grate. Rated at a Load Class C.
ADA Compliant and Heel proof.
Fits SS600 series, POLYCAST® 500, 600, and 700 Series trench drains and holes are 1/4".
Actual Dimensions: 5.12" x 47.81" x .75 (1.50 w/fin)
Specification Sheet for DG0646R
Locking Device for DG0646R for use with POLYCAST®600 system (accepts two locking devices not included)
