POLYCAST DG0647RH Reinforced Slotted Stainless Steel 6"x24" Grate (Nominal Dimensions) | Load Class C
POLYCAST DG0647RH Reinforced Slotted Stainless Steel 6"x24" Grate (Nominal Dimensions) | Load Class C
Additional Information
- Grate Width: 5.25" for Hubbell Polycast
- Grate Height: 0.75"
- Weight: 7.0 lb
- Grate Material / Color / Finish: Stainless Steel 304
- Manufacturer: Hubbell - POLYCAST
- System: POLYCAST 500, POLYCAST 600, POLYCAST 700
- Grate Load Class: Class C
- Channel Material: Polymer Concrete - Polyester, Polymer Concrete - Vinyl Ester
- Application: Residential, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
Actual Dimensions: 5.12″ x 23.9″ x 0.75″

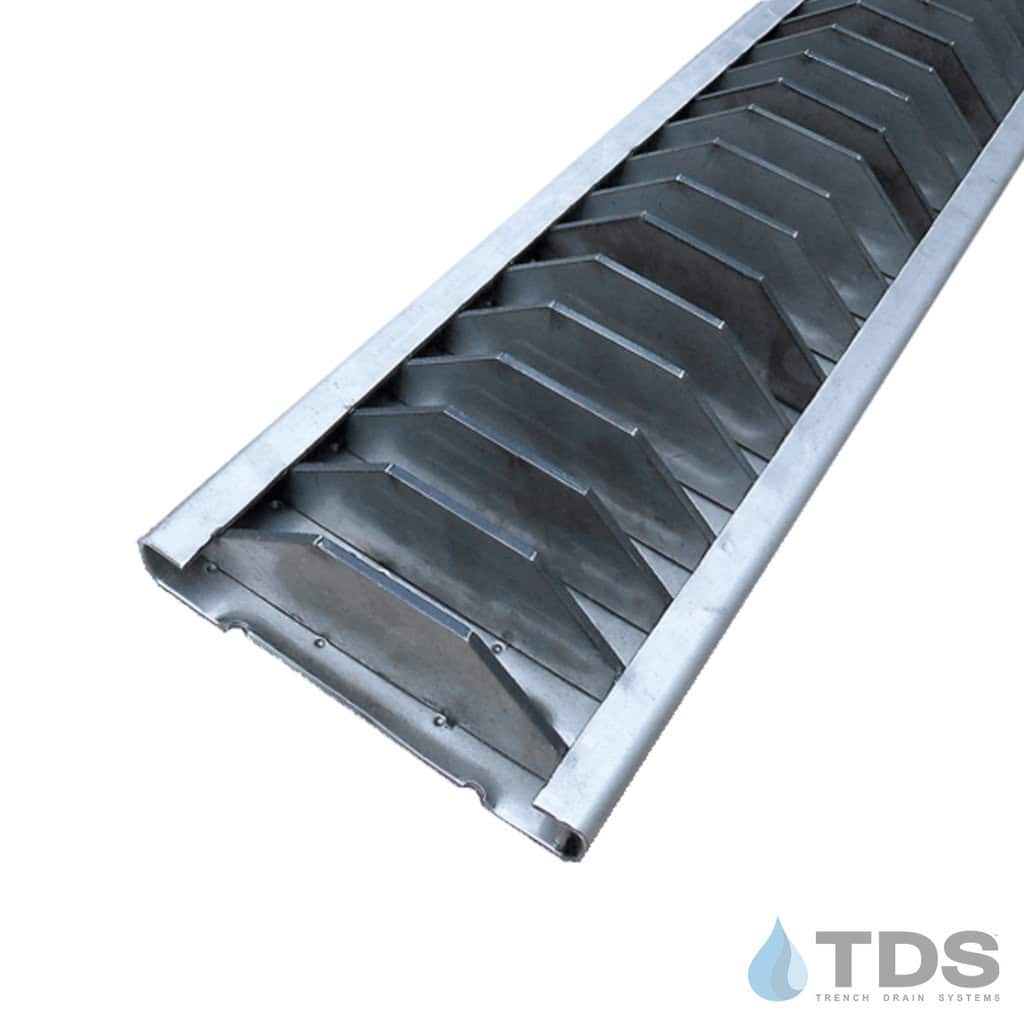

(Height is 1.5″ including the reinforcement fins)
Large project? Request a Quote
Stainless Steel Slotted Reinforced grate is heelproof and ADA compliant. Great for a brewery or winery processing room.
Actual Dimensions: 5.12" x 23.9" x 0.75" (Height is 1.5" when including the reinforcement fins).
See the DG0647RH Specification Sheet for actual dimensions.
Class C load rating and is compatible with:
- POLYCAST 500, 600 and 700 Series trench drains
- TDS SS600 Stainless trench drain system
Grate has 17% (34 sq in) of open area, and is made of 14 gauge 304 stainless steel.
Please Note: Locking device not included. See locking device options below:
DA0542SH Locking Device for use with POLYCAST® 500 w/ Frame
DA0642S Locking Device for use with POLYCAST® 600
DA0642SH Locking device for use with POLYCAST® 700
