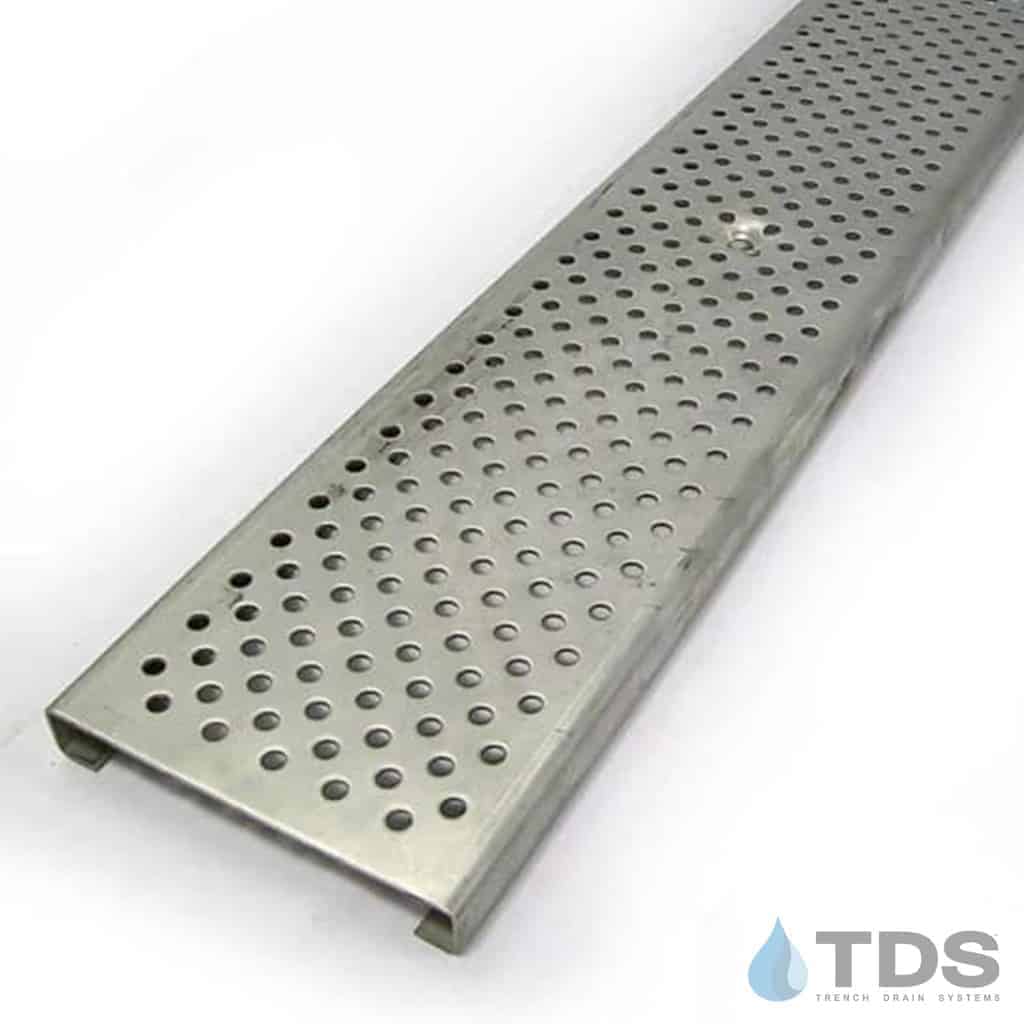

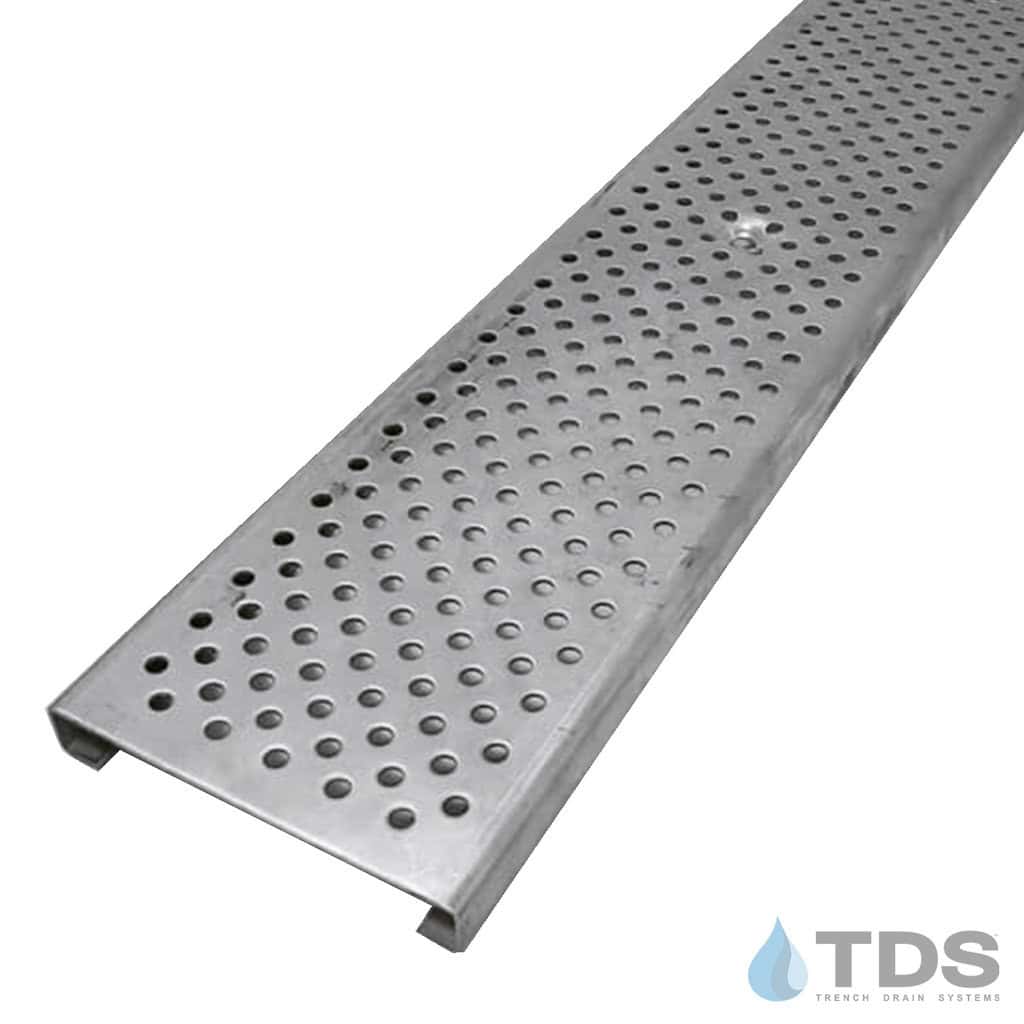

POLYCAST DG0657 Class B ADA Compliant Perforated Stainless Steel 6" x 48" (Nominal Dimensions) Grate
POLYCAST DG0657 Class B ADA Compliant Perforated Stainless Steel 6" x 48" (Nominal Dimensions) Grate
Additional Information
- Grate Width: 5.25" for Hubbell Polycast
- Grate Height: 0.38"
- Weight: 7.0 lb
- Grate Material / Color / Finish: Stainless Steel 304
- Manufacturer: Hubbell - POLYCAST
- System: POLYCAST 500, POLYCAST 600
- Grate Load Class: Class B
- Channel Material: Polymer Concrete - Polyester, Polymer Concrete - Vinyl Ester
- Application: Residential, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
This light-duty DG0657 Perforated Stainless Steel Grate is a great replacement for any 6" grate!
This Perforated Grate measures 5.19" width and length options of 24" and 48" with a slot size of 0.25" dia.
Class B Load Requirements for Light Loads and is ADA compliant.
These grates are perfect for any low-traffic applications such as pedestrians, bicycles, and golf carts.
Actual Dimensions: 5-3/16" x 47-13/16"
Locking devices not included - For POLYCAST® 600 locking device, click here.
Specification Sheet for DG0657
