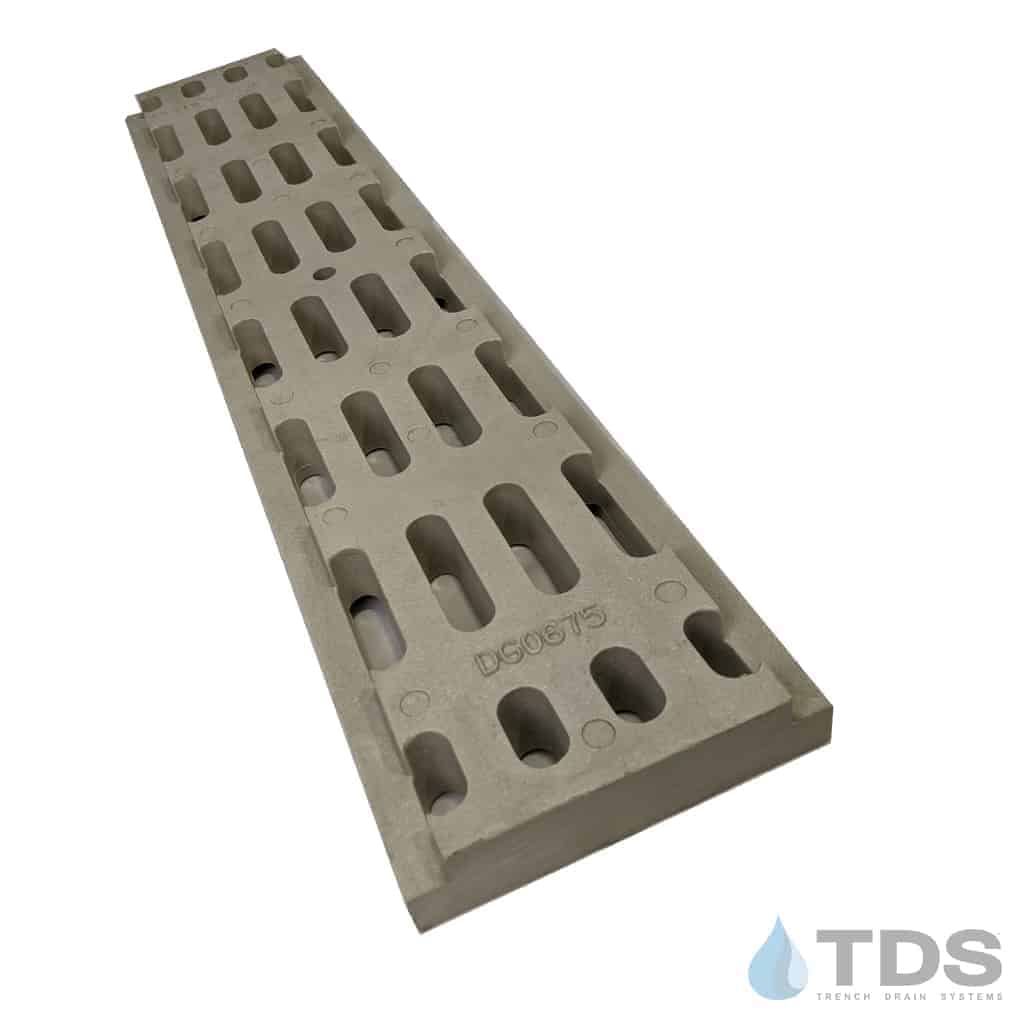

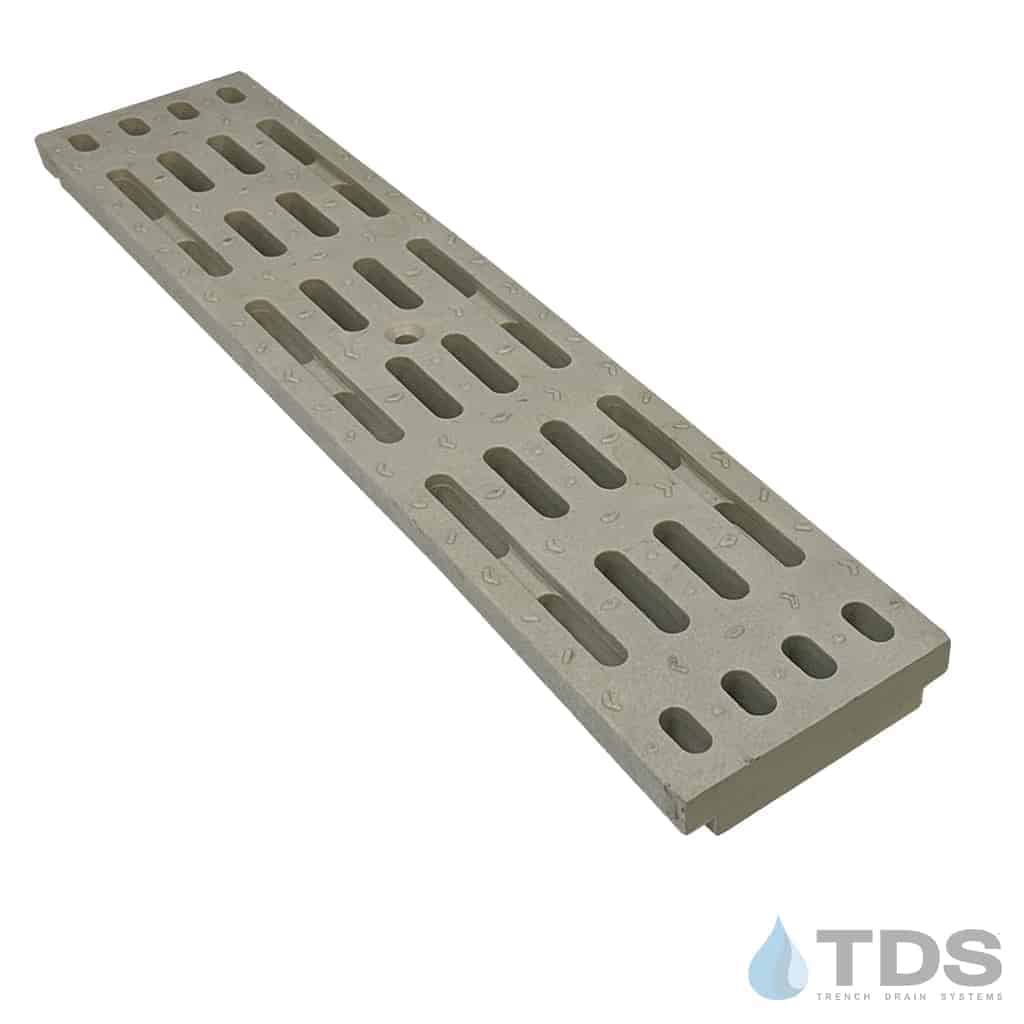

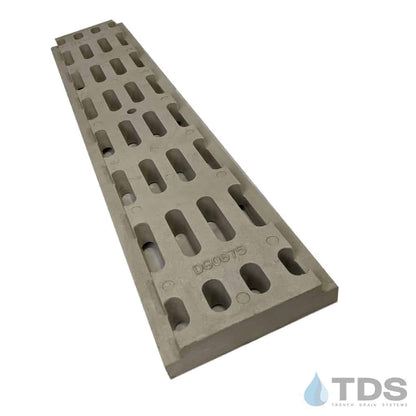

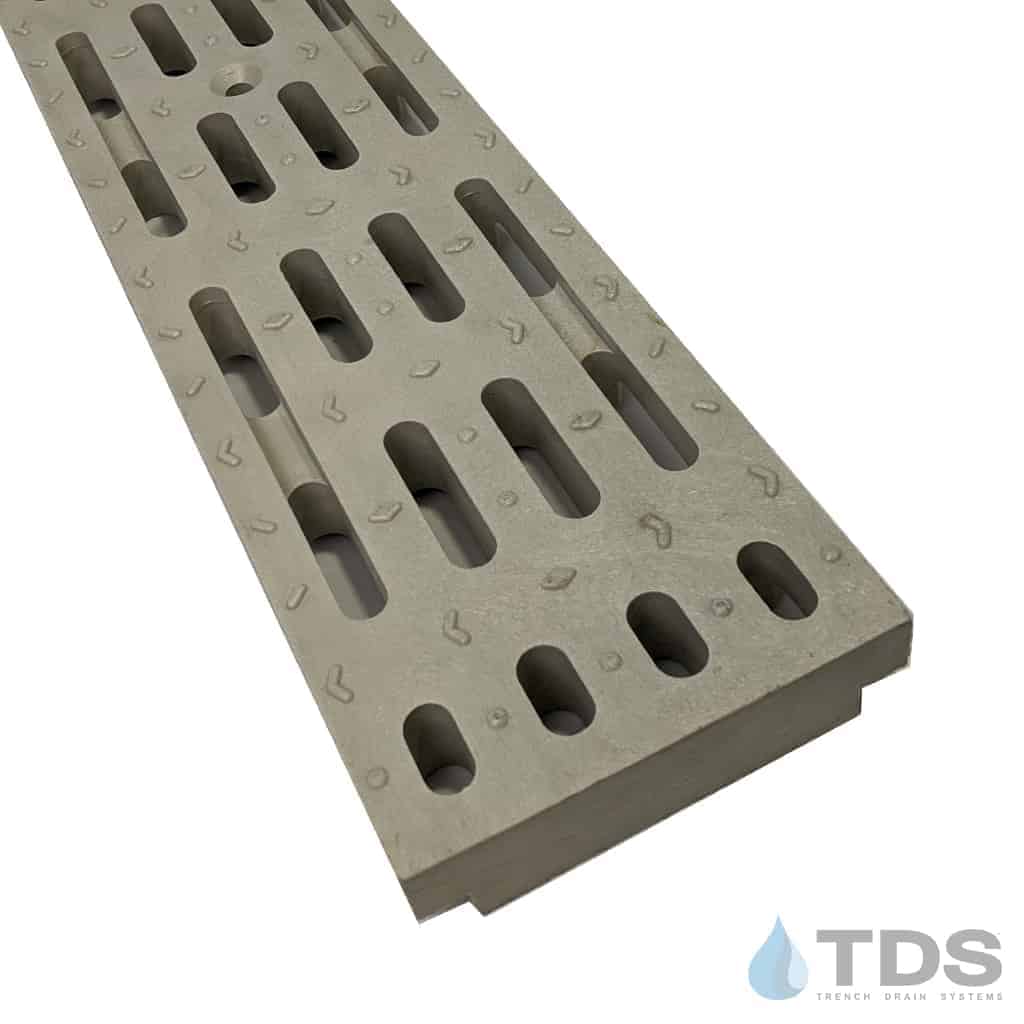

POLYCAST DG0675G Class A Transverse Slotted HDPE 6"x24" (Nominal Dimensions) Grate - Gray
POLYCAST DG0675G Class A Transverse Slotted HDPE 6"x24" (Nominal Dimensions) Grate - Gray
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 5.25" for Hubbell Polycast
- Grate Height: 0.75"
- Weight: 4.0 lb
- Grate Material / Color / Finish: Plastic/HDPE - Gray
- Manufacturer: Hubbell - POLYCAST
- System: POLYCAST 500, POLYCAST 600
- Grate Load Class: Class A
- Channel Material: Polymer Concrete - Polyester, Polymer Concrete - Vinyl Ester
- Application: Residential, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
POLYCAST® 6″x24″ ADA Compliant Transverse Slotted HDPE Grate
Large project? Request a Quote
DG0675G- DuraGuard HDPE longitudinal (transverse) slotted grate for the stainless SS600 Series and the POLYCAST® 600 Series and 700 Series trench drain systems by Hubbell. Use in corrosive applications or where sanitary conditions are necessary. Provides excellent chemical resistance and durability. When used in high-velocity transverse sheet flow applications, the transverse slots create turbulence to improve entry of flow into the channel. Not recommended for use with POLYCAST® 500 system as it will partially block flow within the channel.
ADA Compliant.
Color: Grey
Actual Dimensions: 5-3/16" x 23-7/8"
Specification Sheet for DG0675G
Locking device not included, for POLYCAST 600 locking device, CLICK HERE.
