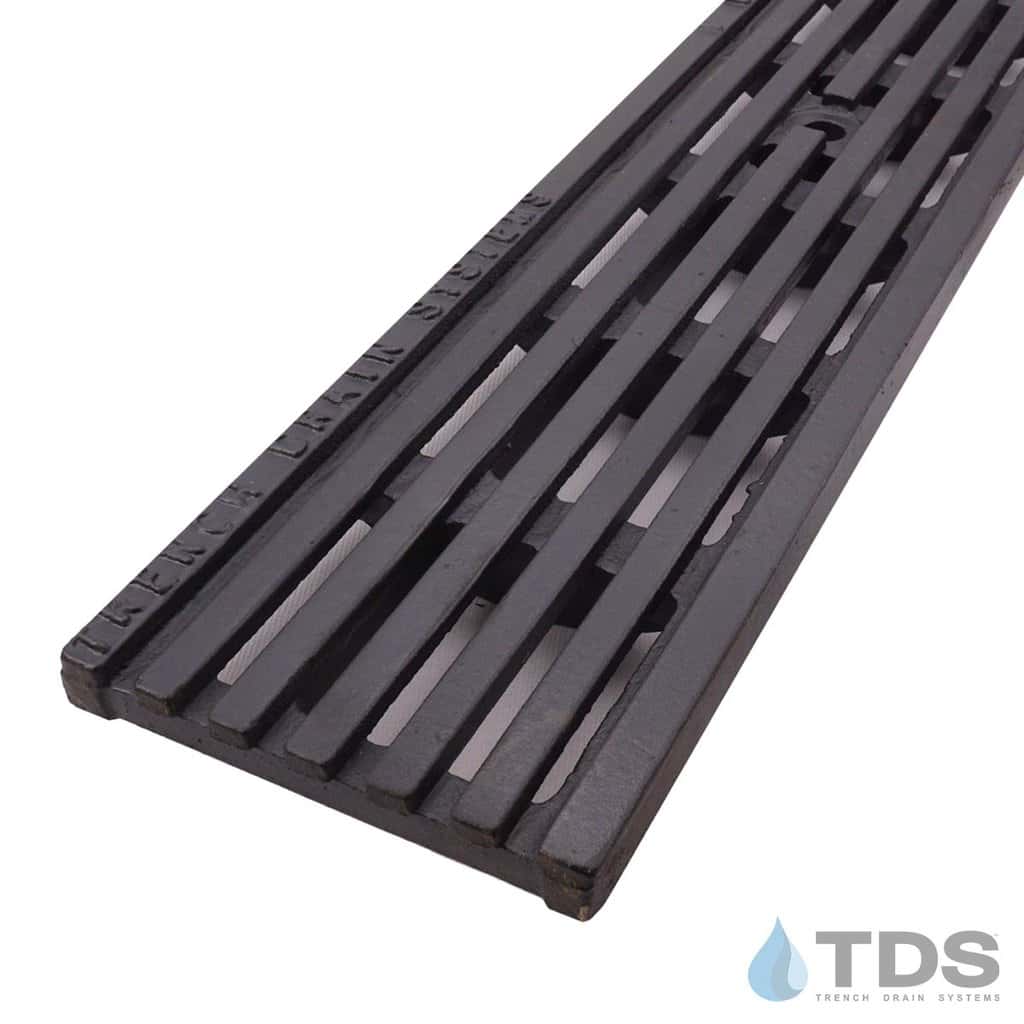

POLYCAST DG0675HD Class D Heel-Proof ADA Compliant Transverse Slotted Ductile Iron 5.19" x 24" Grate

DG0675HD - Heavy-duty slotted ductile iron drainage grate is designed for use where ADA-compliance is needed in heavy traffic applications. Compatible with POLYCAST® 500, 600, and 700 Series polymer concrete trench drain systems by Hubbell Inc. This robust grate is ADA-compliant and finished with a durable black primer coating for long-lasting performance in high-traffic drainage applications.

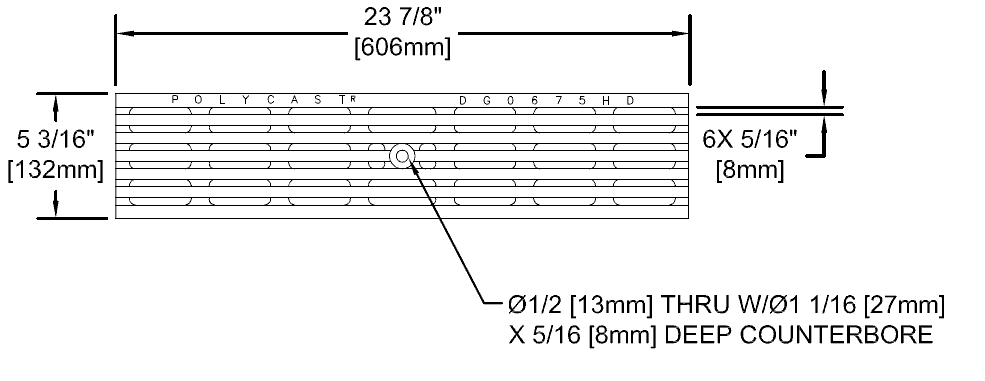

• Grate Actual Dimensions: 5.19" W x 23.88" L x .75" H

• Load Class D
• Load Class E - when mounted in Duraguard HDPE frame
• Load Class F - when mounted in Hardnose iron frame

Specification Sheet for DG0675HD

Locking device not included -Locking device not included. Click below on the system for the related locking device:

POLYCAST® 600 locking devices for DG0641D
POLYCAST® 700 locking devices for DG0641D
