RG-151424-AB Heavy Duty Ductile Iron Slotted 14" x 24" x 1.5" Grate | TDS
RG-151424-AB Heavy Duty Ductile Iron Slotted 14" x 24" x 1.5" Grate | TDS
Additional Information
- Grate Width: 14.00"
- Grate Height: 1.50"
- Weight: 72.0 lb
- Grate Material / Color / Finish: Ductile/Cast Iron - Raw
- Manufacturer: TDS (Trench Drain Systems)
- System: Foundry
- Grate Load Class: Class D
- Channel Material: Form Your Own OR Site Built
- Application: Residential, General Purpose Drainage - External, Transportation
Description

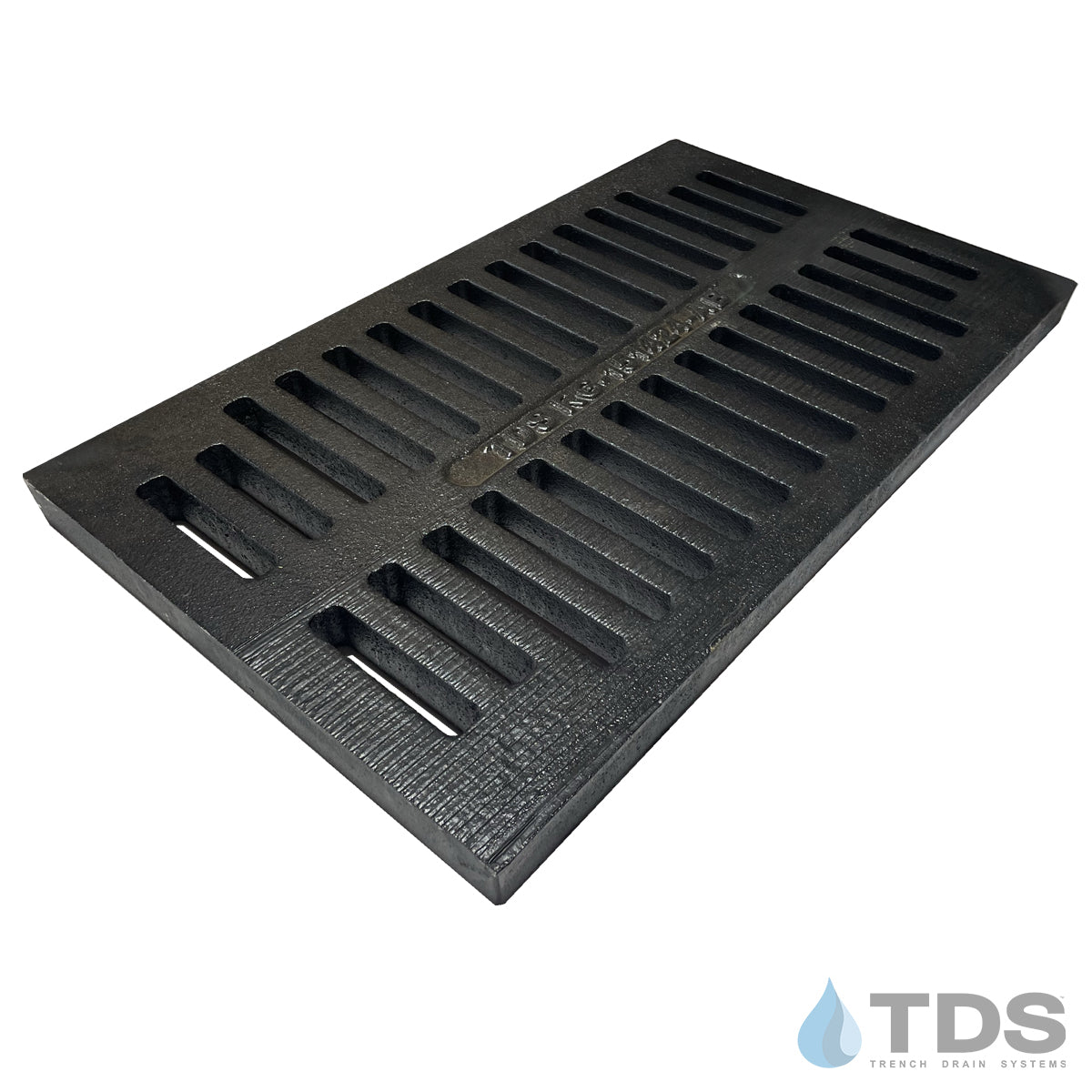

RG-151424-AB heavy-duty ductile iron grate that measures 14" x 24" x 1.5" and includes a flat-bottomed edge. Each grate weighs approximately 72 lbs and is designed to fit a variety of applications where a more robust grate is needed.
NOTE: Due to the weight of this product, expect higher than normal shipping costs.
An alternative to Neenah R-4990-DX
Load Class D (134,800 lbs per foot (600 kN) rolling traffic)
Actual Dimensions : 14-1/8" x 23-7/8" x 1.5"
Looking to create a DIY trench drain system with these grates? We have a variety of rails/frames to make the build easier.
All ductile iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to a dark brown.
