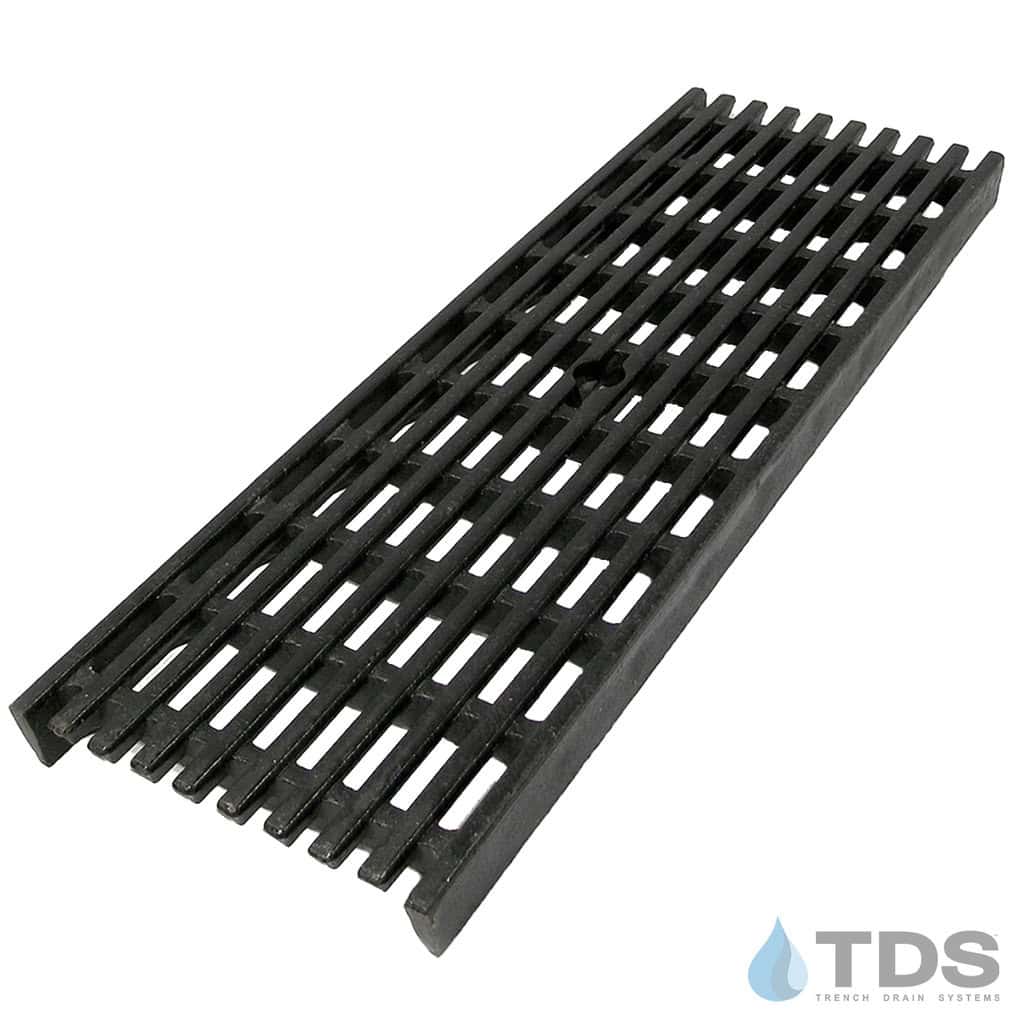

TDS 3000 Series DG3043D Class D ADA Compliant Transverse Slotted Ductile Iron 8"x24" Grate

TDS 3000 Series DG3043D Class D ADA Compliant Transverse Slotted Ductile Iron 8"x24" Grate

Skip to product information
1 of 1

Trench Drain Grates

SKU:DG3043D

Regular price $72.09 USD
Regular price Sale price $72.09 USD
Sale Sold out
View full details

Additional Information

  • Grate Width: 8.00" for TDS FP/FF/FE 0600
  • Grate Height: 1.50"
  • Product Type: Channel Grate, Grate
  • Grate Material / Color / Finish: Ductile/Cast Iron - Raw
  • Manufacturer: TDS (Trench Drain Systems)
  • System: 3000 Series (Replacement Parts Only), FE0600, FP0600, FF Series
  • Grate Load Class: Class D
  • Channel Material: Fiberglass - Polyester, Cast in Place / EPS Foam, Form Your Own OR Site Built
  • Application: Residential, General Purpose Drainage - Interior, General Purpose Drainage - External, Transportation

Description

Ductile Iron Class D Grate for the TDS 3000 Series Drainage Kit

ADA Compliant

Designed to fit the TDS 3000 Series channel drain by Trench Drain Systems this ductile iron grate can also replace your old POLYCAST® cast iron trench grates. It features a transverse slotted/longitudinal pattern.

Accommodates one (1) DA3042B locking device (sold separately

Measurements: 8″ x 24" x 1 1/2" high, openings measure 1/2" x 2", longitudinal bars are 3/8" wide
Weight: 19 lbs.

DG3043D Grate Specification Sheet DG3043D Spec Drawing

This ADA-compliant ductile iron grate meets Class D loading requirements.

These grates are perfect for any heavy-duty applications such as:
