TDS 462G Class D Slotted Ductile Iron Grate
TDS 462G Class D Slotted Ductile Iron Grate
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 4.81" for ULMA
- Grate Height: 0.75"
- Weight: 10.3 lb
- Grate Material / Color / Finish: Ductile/Cast Iron - Raw
- Manufacturer: TDS (Trench Drain Systems)
- System: ABT Polydrain, ACO K100, ACO KS100, D100, HYDROPLUS, HYDROPLUS MINI, M100K, M100KX, U100K, U100KX, M100V
- Grate Load Class: Class D
- Application: Residential, Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External
Description

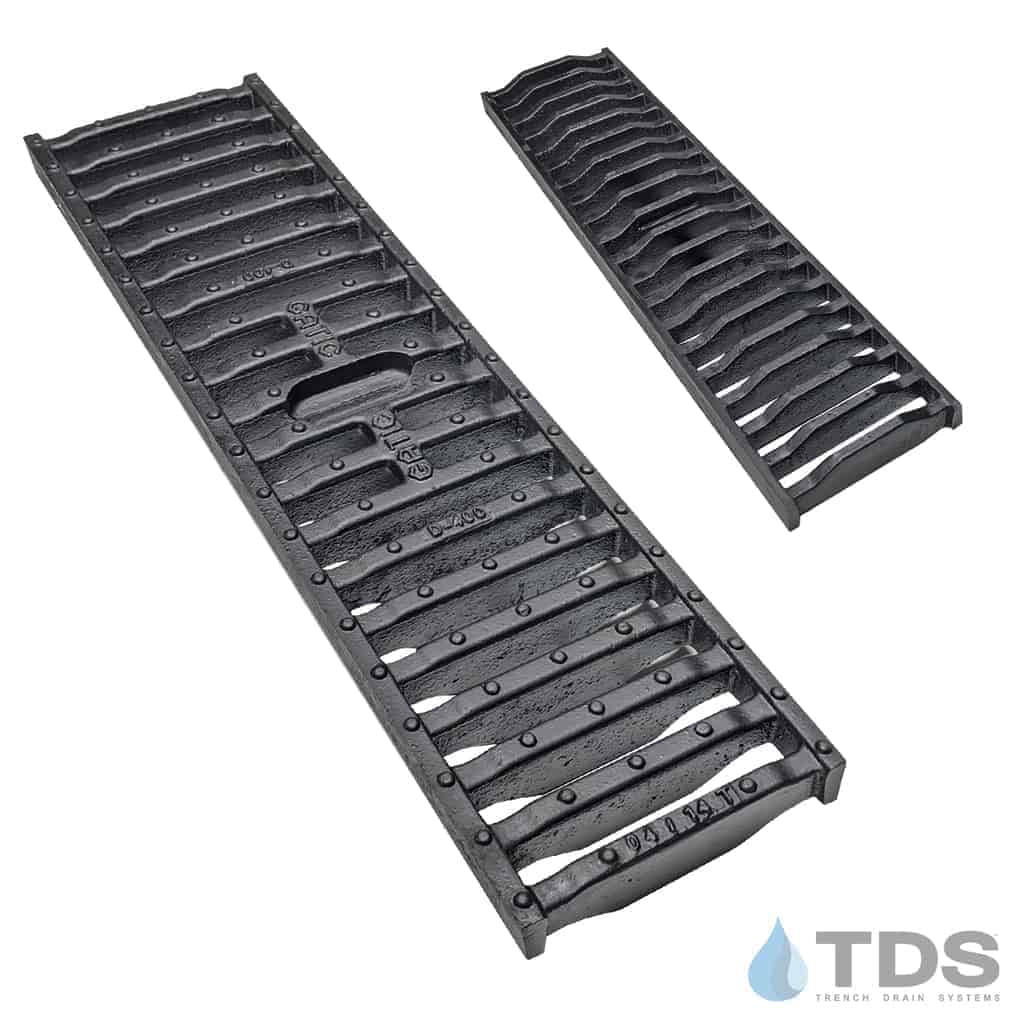

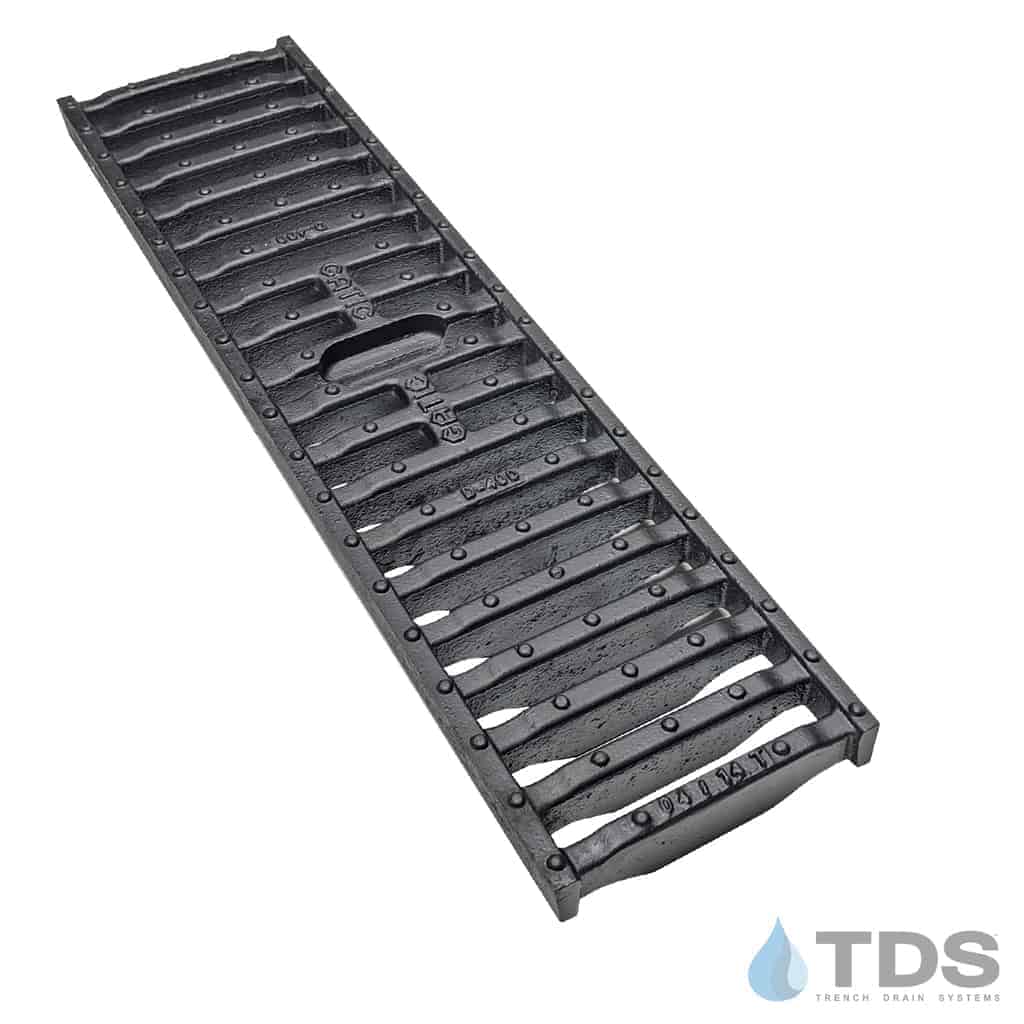

Universal Ductile Iron Slotted (Class D) Gatic grate that works with 100 mm wide trench drain systems. This ductile iron slotted grate is ideal for replacing your K100S, ABT PolyDrain, MEA J1000, or ULMA U100K trench drain system grates.
The 462G grate is the perfect replacement for your now obsolete MEArin 152411 grate.
Grate measures 123mm x 0.5M x 21mm Specification Sheet
Locking device sold separately.
- The LD100X-3 locking device is compatible with the ULMA U100, D100, and HYDROPLUS channel systems.
- The LD100MX-3 locking device is compatible with the ULMA M Series channel system.
- The 141460 locking device is compatible with the MEArin 100 channel.
- The 2811B locking device is compatible with the ABT Polydrain channel.
