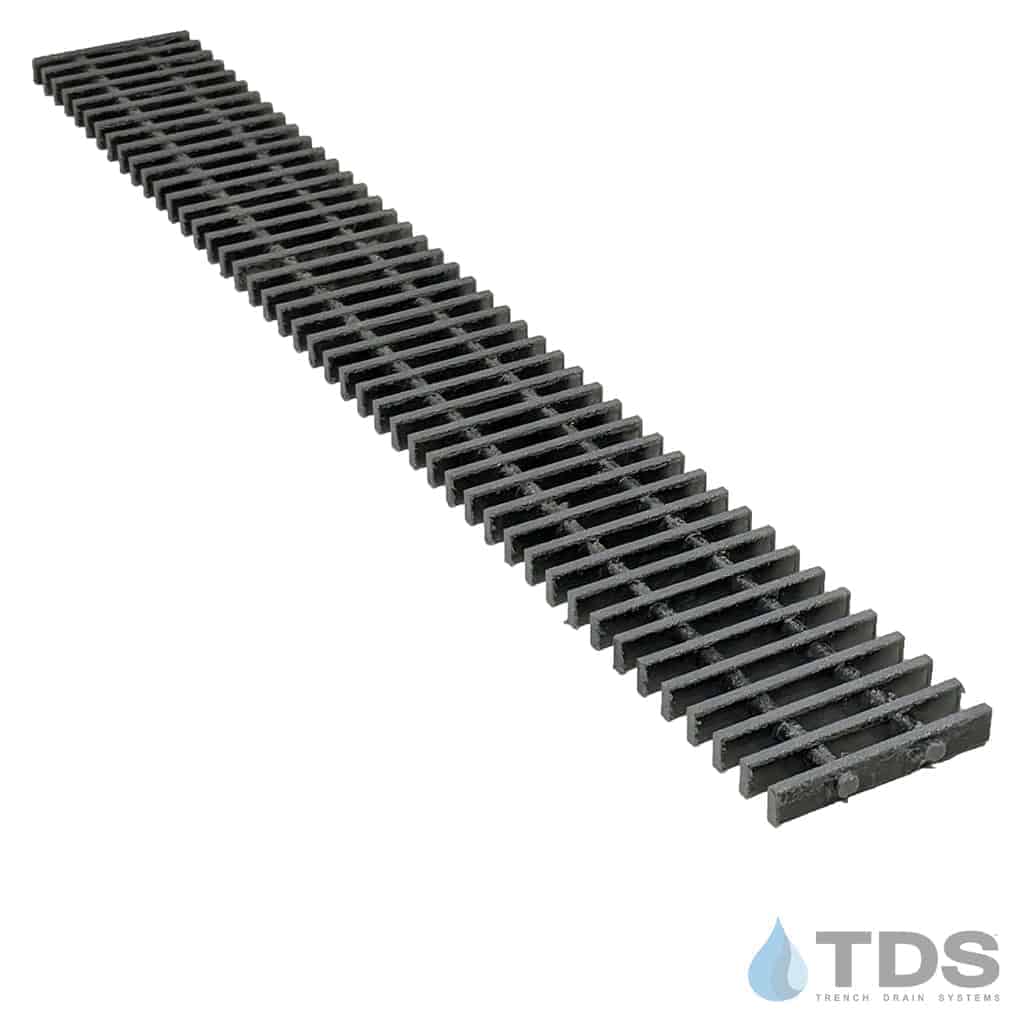

TDS 486 Class B Vinyl-Ester Fiberglass Bar 122mm x 1M Bar Grate - 0.9" centers
TDS 486 Class B Vinyl-Ester Fiberglass Bar 122mm x 1M Bar Grate - 0.9" centers
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 4.81" for ULMA
- Grate Height: 0.75"
- Weight: 4.0 lb
- Grate Material / Color / Finish: Fiberglass
- Manufacturer: ULMA
- Grate Load Class: Class B
- Application: Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
Actual Dimensions: 0.75″ [20mm] x 4.80″ [122mm] x 39.29″ [998mm]
Large project? Request a Quote
Fiberglass Polyester Resin (FRP) Bar grate. Normally used in areas where extreme chemical resistance is needed but with no heavy loads. This grate has a non-slip grit surface.
Locking device sold separately.
- LD100X-5 locking device (2 per 1M channel section) is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
- LD100X-5CB locking device (2 per 1M channel section) is compatible with ULMA AD100 & AK100 Catch Basins.
TDS 486 Grate Specification Sheet
Designed to fit:
-
- ULMA - HYDROPLUS
- ULMA - U100 and M100
- MEA-Josam - MEArin 100
- MEA-Josam - MEA J1000
- MultiDrain - Alfa Channel
- J.R. Smith - Enviro-Flo
- J.R. Smith - Smith K100S
- ABT - Polydrain
