TDS DG3041D Class F Slotted Ductile Iron 8" x 24" Grate
TDS DG3041D Class F Slotted Ductile Iron 8" x 24" Grate
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 8.00" for TDS FP/FF/FE 0600
- Grate Height: 1.50"
- Weight: 33.0 lb
- Grate Material / Color / Finish: Ductile/Cast Iron - Raw
- Manufacturer: TDS (Trench Drain Systems)
- System: 3000 Series (Replacement Parts Only), FE0600, FP0600, FF Series
- Grate Load Class: Class F
- Channel Material: Fiberglass - Polyester, Cast in Place / EPS Foam, Form Your Own OR Site Built
- Application: Residential, General Purpose Drainage - Interior, General Purpose Drainage - External, Transportation
Description
For aircraft runways, docks, and high-impact wheel loads. Made in USA!
Large project? Request a Quote

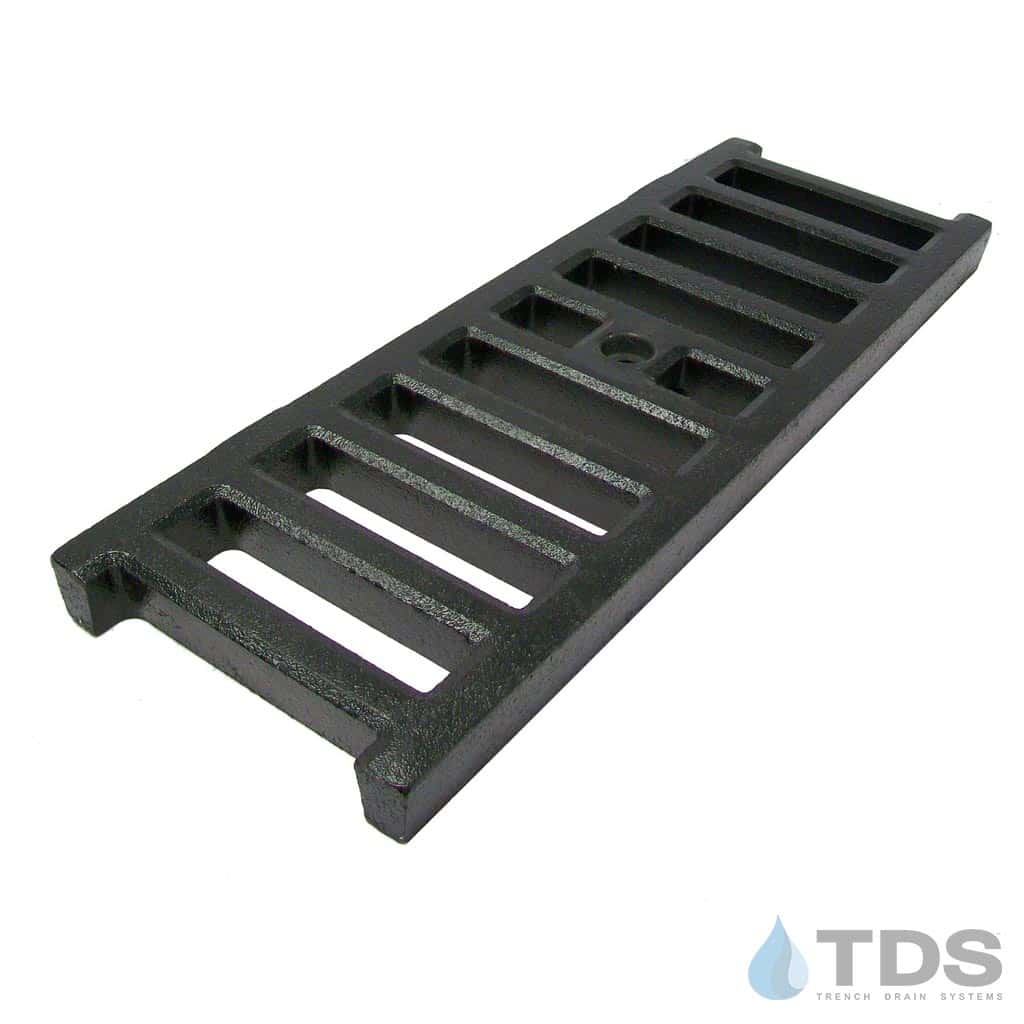

The TDS DG3041D 8" x 24" ductile iron slotted grate is suitable for heavy load traffic applications. This Load Class F grate is designed to fit the 3000 Series by Trench Drain Systems™. Each heavy-duty grate weighs 35 lbs and comes in black paint as the standard.
Accepts (1) DA3042B Locking device which is sold separately.
Specification Sheet for DG3041D
Specification Sheet for DA3042B Locking Device
