Fiberglass mesh grate for 3000 Series channel.
Large project? Request a Quote

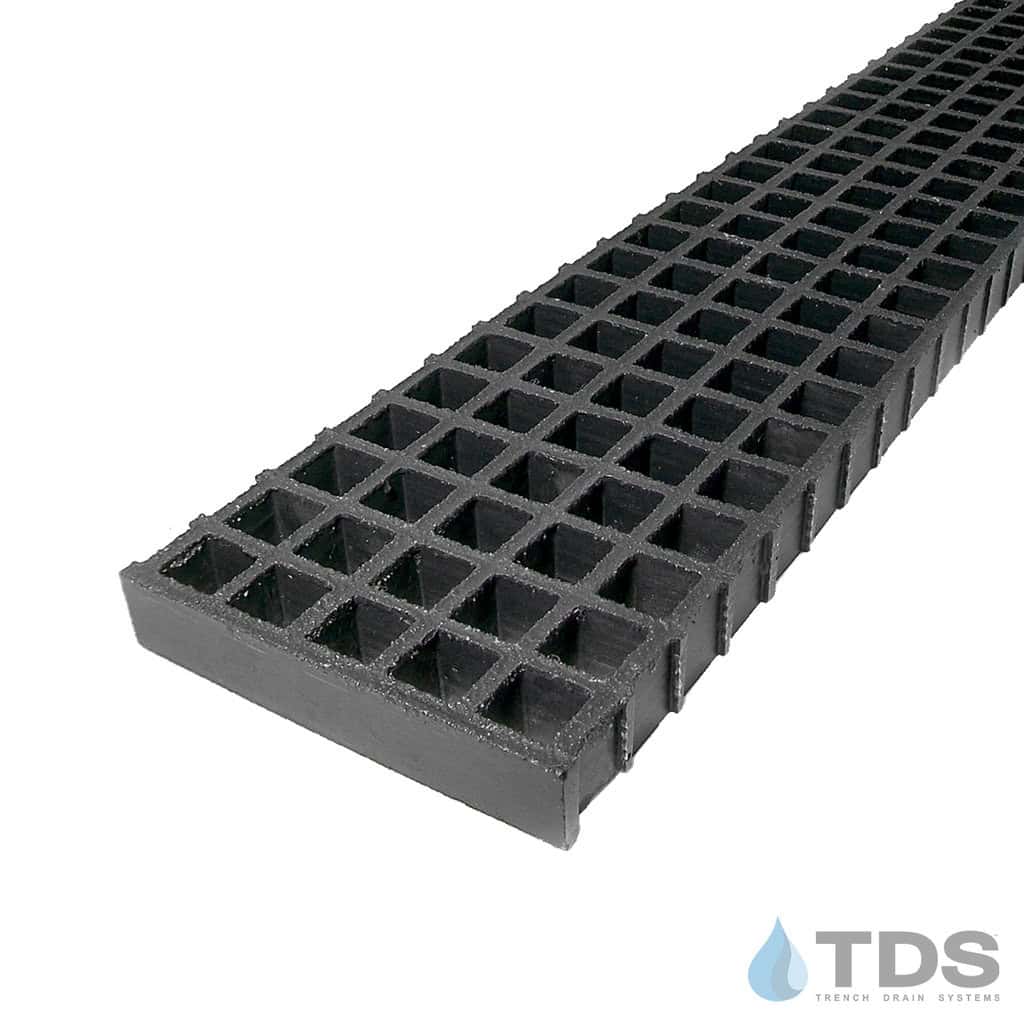

TDS DG3045 fiberglass gritted non-slip mesh 8" wide grate is normally used in areas where extreme chemical resistance is needed, but with no heavy loads. This 1.5" square mesh grating meets a Load Class B rating. It is designed for a distributed pressure of 28,100 LBS if installed correctly. Originally designed for the TDS exclusive 3000 series, which has since been transformed into the Trench•Era™ FF series.
Material: Fiberglass-reinforced Isophthalic Polyester Resin (FRP)
Locking devices not included (DA3042M)
Specification Sheet for DG3045
Nominal measurement: 8" x 48"
