TDS DG3048R Class C BAR Galvanized 8" x 24" Grate
TDS DG3048R Class C BAR Galvanized 8" x 24" Grate
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 8.00" for TDS FP/FF/FE 0600
- Grate Height: 1.50"
- Weight: 19.0 lb
- Grate Material / Color / Finish: Galvanized Steel
- Manufacturer: TDS (Trench Drain Systems)
- System: 3000 Series (Replacement Parts Only), FE0600, FP0600, FF Series
- Grate Load Class: Class C
- Channel Material: Fiberglass - Polyester, Cast in Place / EPS Foam, Form Your Own OR Site Built
- Application: Residential, General Purpose Drainage - Interior, General Purpose Drainage - External, Transportation
Description

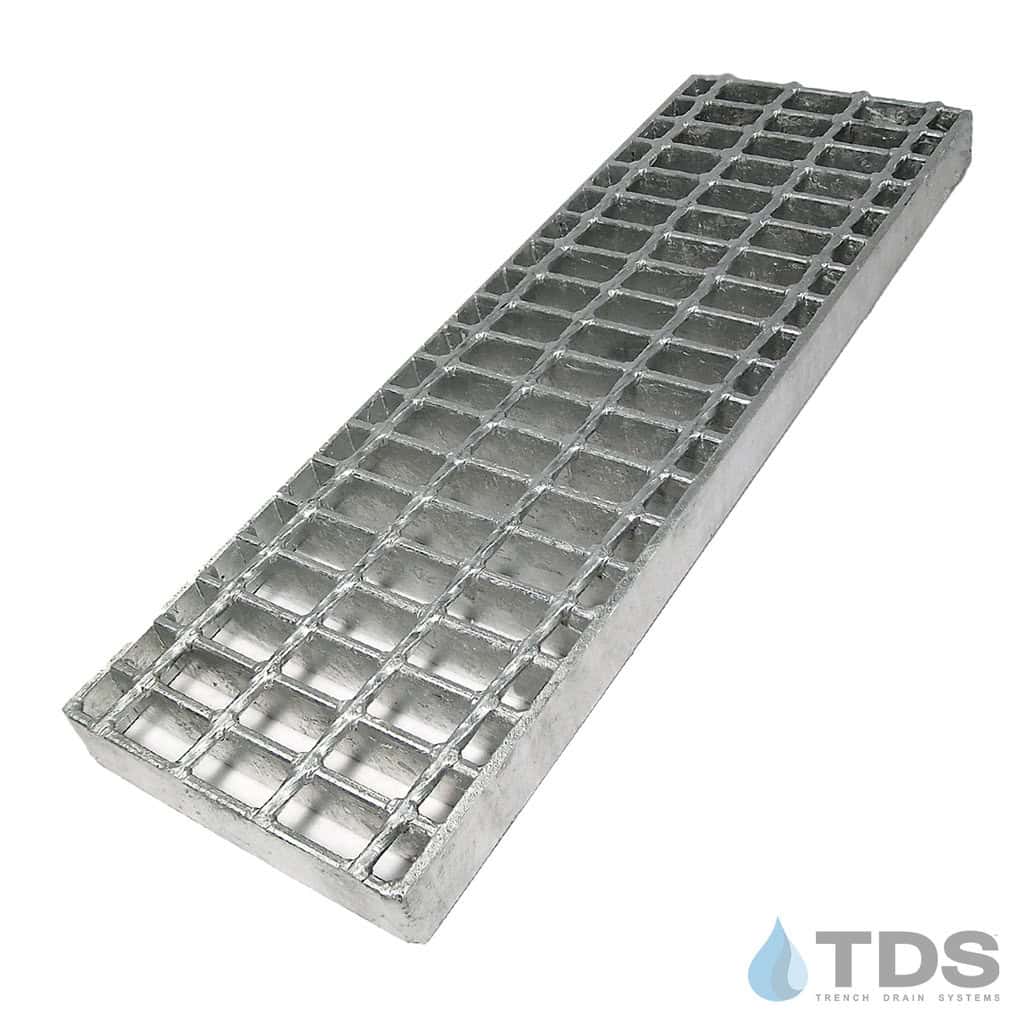

TDS DG3048R galvanized heavy-duty bar grate by Trench Drain Systems is suitable for a variety of medium-traffic applications. This steel mesh grating meets a Load Class C rating. It is designed for a distributed pressure of 56,200 BS if installed correctly. Originally designed for the TDS exclusive 3000 series, which has since been transformed into the Trench•Era™ FF series.
Locking devices not included (DA3042B)
Actual Dimensions: 23-15/16" x 8" x 1-1/2"
Specification Sheet for DG3048R
