Designed for the FP1200, SS1200 and frame and grate trench drain systems – Class E Heavy Loads
Large project? Request a Quote

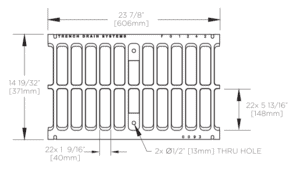

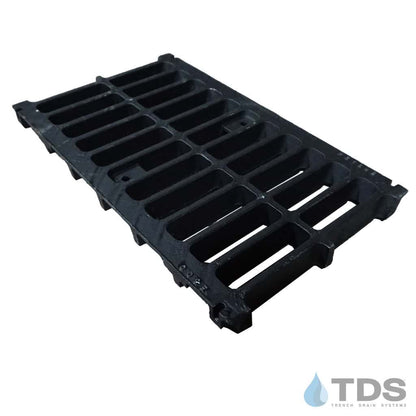

Designed to fit the FP1200 Series, SS1200 Series or rail and grate trench drain systems, these heavy-duty slotted ductile iron grates can also replace your old POLYCAST® cast iron trench grates. This grate has two (2) bolt-down holes (bolts not included). Measures 14.6" x 24" x 1.5" (nominal)
Meets Class E Loading Requirements for Heavy Loads.
Locking device HW FGDI sold separately
These grates are perfect for any high-traffic, heavy-load applications such as:
Take a look at our Product Feature Blog!
TDS Slotted Ductile Iron Grate - Class E
