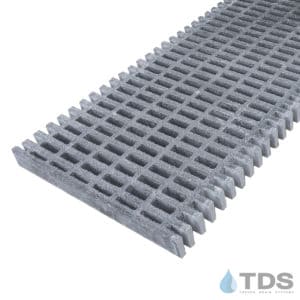

TDS FG1244 Class C Mesh Fiberglass 14" x 48" x 1.5" Grate
TDS FG1244 Class C Mesh Fiberglass 14" x 48" x 1.5" Grate
Additional Information
- Grate Width: 14.66" for TDS FP/FF/FE 1200
- Grate Height: 1.50"
- Weight: 30.0 lb
- Grate Material / Color / Finish: Fiberglass
- Manufacturer: TDS (Trench Drain Systems)
- System: FE1200, FP1200 (Replacement Part Only), FF Series, SS1200
- Grate Load Class: Class C
- Channel Material: Fiberglass - Polyester, Cast in Place / EPS Foam, Form Your Own OR Site Built
- Channel Frame / Edging: Frame - Galvanized, Frame - Stainless, Frame - Fibergrate - EZ, Frame - Fibergrate - WYE, Frame - Ductile Iron
- Application: Residential, Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
Fiberglass High Load Capacity, HS-20 grates for the FP1200 Series, SS1200 or frame and grate trench drain systems.
Actual dimensions are 14.59″ x 47.87″ x 1.5″
Designed to fit the FP1200 Series, SS1200 Series or frame and grate trench drain systems. This grate has two (2) bolt-down holes (bolts not included). Measures 14.6" x 48" x 1.5" (nominal).
Actual dimensions are 14.59" x 47.875" x 1.5"
Rectangular mesh 1" x 2" on center
Rated for High Load Capacity (HLC), Class HS-20
Specification Sheet for FG1244
These fiberglass mesh grates are perfect for heavy-load applications.
