TDS FG1275 Class E Transverse Slotted Ductile Iron 14" x 24" x 1.5"Grate

TDS FG1275 Class E Transverse Slotted Ductile Iron 14" x 24" x 1.5"Grate

Skip to product information
1 of 2

Trench Drain Grates

SKU:FG1275

Regular price $344.41 USD
Regular price Sale price $344.41 USD
Sale Sold out
View full details

Additional Information

  • Grate Width: 14.66" for TDS FP/FF/FE 1200
  • Grate Height: 1.50"
  • Product Type: Channel Grate, Grate
  • Grate Material / Color / Finish: Ductile/Cast Iron - Raw
  • Manufacturer: TDS (Trench Drain Systems)
  • System: FE1200, FP1200 (Replacement Part Only), FF Series, SS1200
  • Grate Load Class: Class E
  • Channel Material: Fiberglass - Polyester, Cast in Place / EPS Foam, Form Your Own OR Site Built
  • Channel Frame / Edging: Frame - Galvanized, Frame - Stainless, Frame - Fibergrate - EZ, Frame - Fibergrate - WYE, Frame - Ductile Iron
  • Application: Residential, General Purpose Drainage - External, Transportation

Description

Large project? Request a Quote

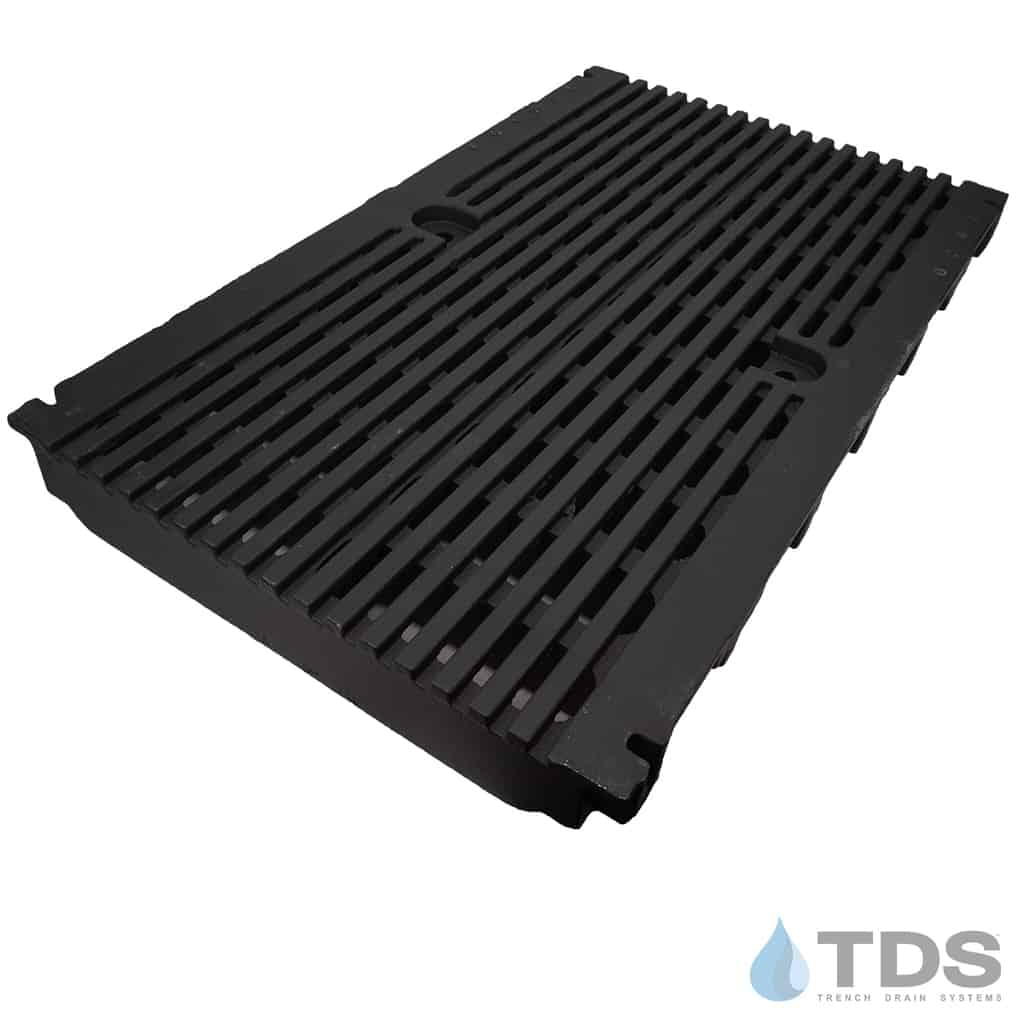

Designed to fit the FP1200 Series, SS1200 Series or rail and grate trench drain systems, this heavy-duty transverse slotted ductile iron grate can also replace your old POLYCAST® cast iron trench grates. This grate has two (2) bolt-down holes (bolts not included).  Measures 14.6″ x 24″ x 1.5" (nominal)

HS25 rated and meets Class E Loading Requirements for Heavy Loads and is ADA compliant.

Locking device HW FGDI sold separately

These grates are perfect for any high-traffic, heavy-load applications such as:

Made in the USA

Take a look at our Product Feature Blog!

TDS Slotted Ductile Iron Grate – Class E
