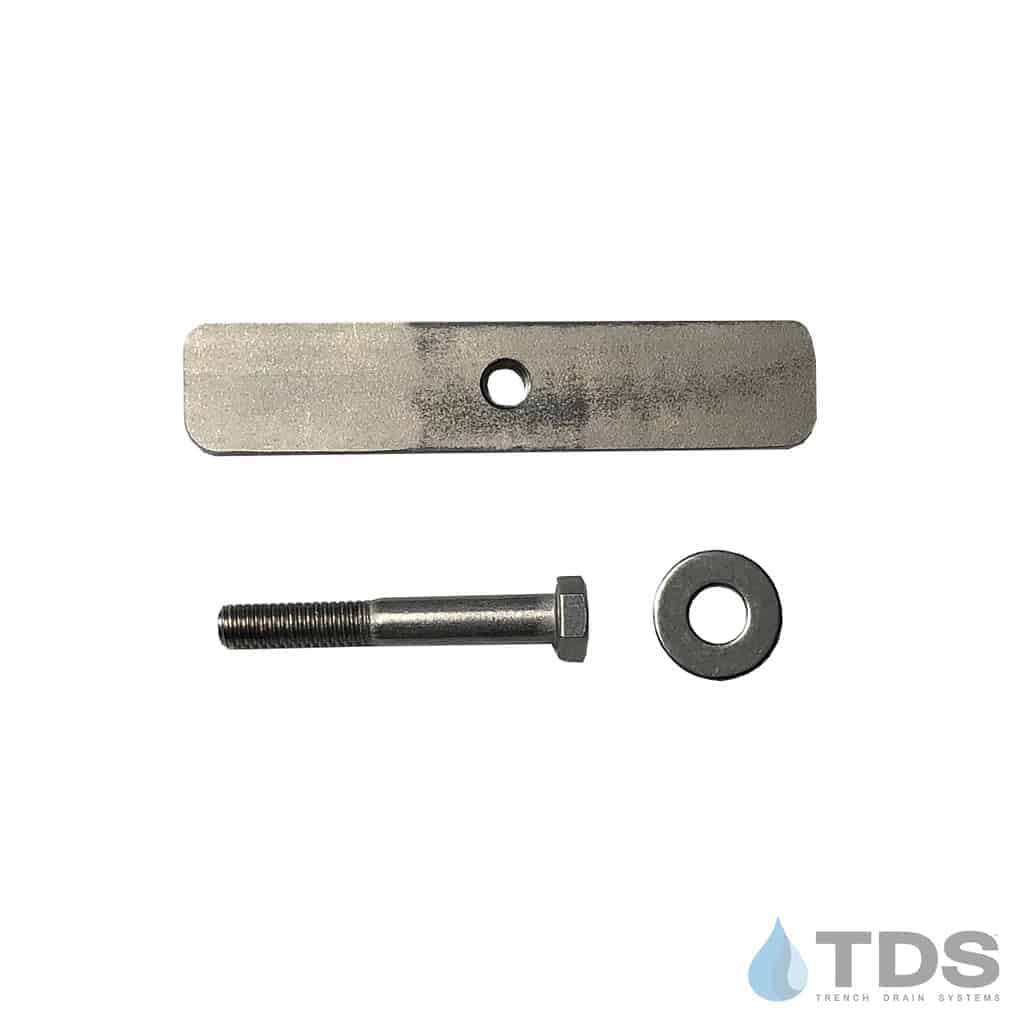

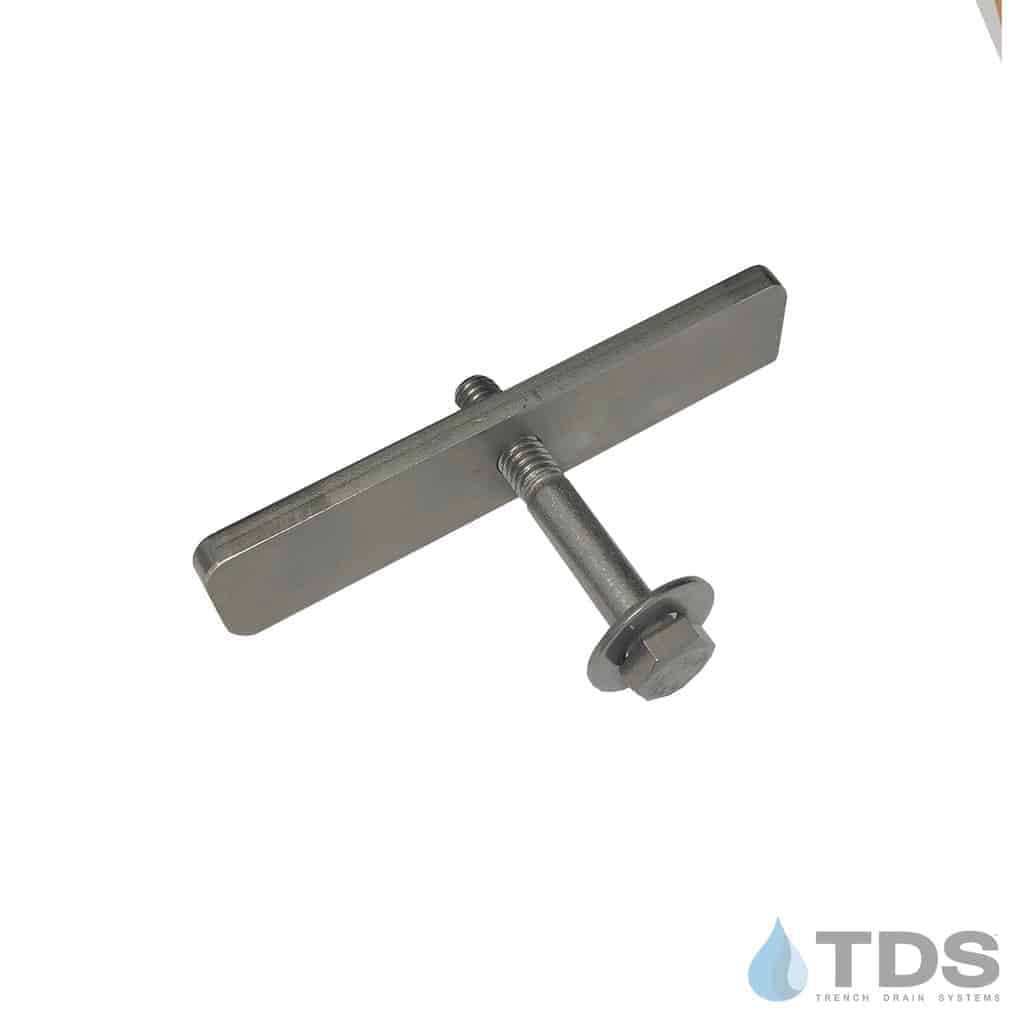

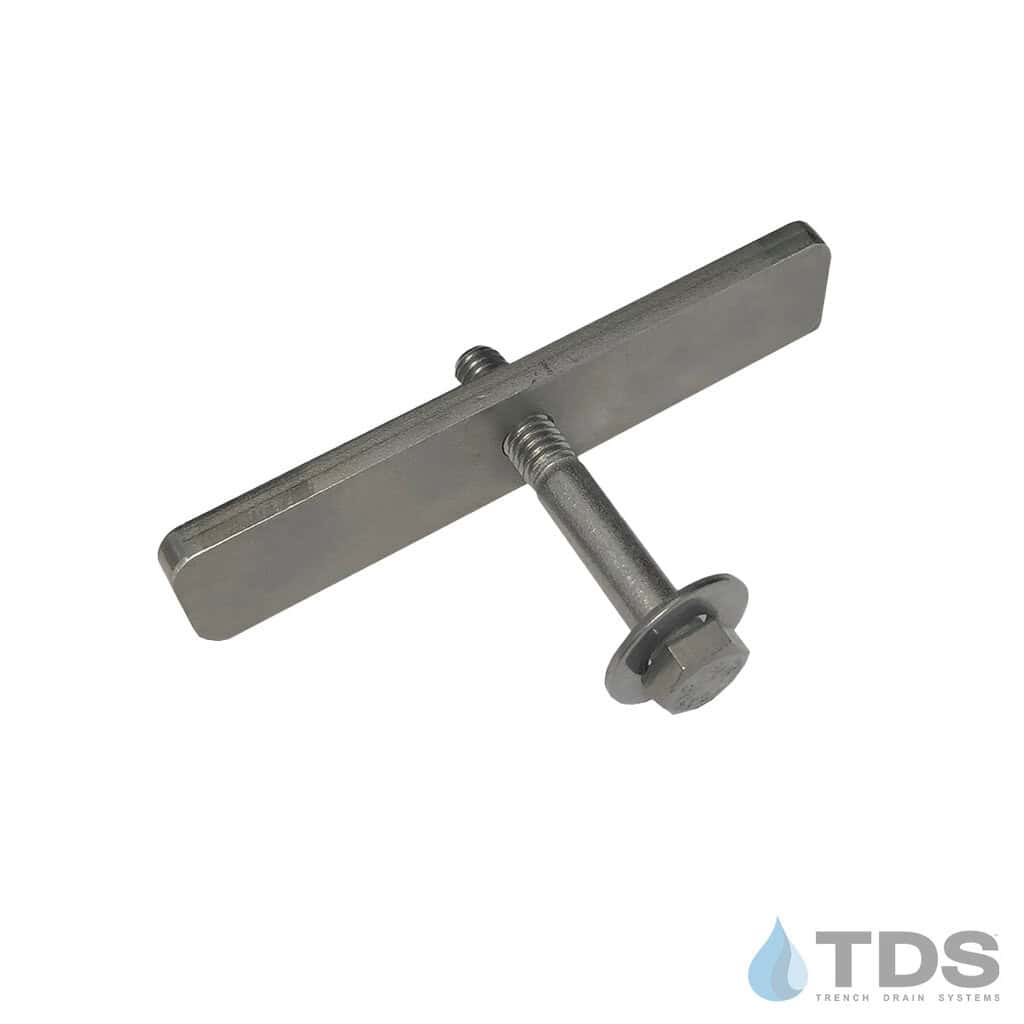

TDS-POLYCAST DA0542BHS Hold-Down Device for 500 Series Stainless Steel Bar Grates
TDS-POLYCAST DA0542BHS Hold-Down Device for 500 Series Stainless Steel Bar Grates
Additional Information
- Grate Width: 5.25" for Hubbell Polycast
- Grate Height: 0.75"
- Weight: 1.0 lb
- Grate Material / Color / Finish: Stainless Steel 304
- Manufacturer: Hubbell - POLYCAST
- System: POLYCAST 500
- Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational
Description
POLYCAST 500 Stainless Steel Bar Grate Locking Device
Each locking device includes:
Hex Head Cap Screw
Flat Washer
Lock Bar
Large project? Request a Quote
Locking device for POLYCAST 500 series with flat head screw for stainless steel bar grates with frames.
Grates need to be locked in place in situations where there's a possibility they will be driven over. This helps to provide system integrity when used appropriately.
Designed to fit: POLYCAST 500 System
Compatible Grates:
Includes: 3/8 - 16 X 3.50" Hex Head Cap Screw, 3/8" Flat Washer, and 4.75" (120.6 mm) Lock Bar
