TDS Reinforced Wedge Wire Stainless Steel ADA Compliant Class C Grate
TDS Reinforced Wedge Wire Stainless Steel ADA Compliant Class C Grate
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 4.81" for ULMA
- Grate Height: 0.75"
- Weight: 5.0 lb
- Grate Material / Color / Finish: Stainless Steel 316L
- Manufacturer: ULMA
- System: ABT Polydrain, ACO K100, ACO KS100, D100, HYDROPLUS, HYDROPLUS MINI, M100K, M100KX, U100K, U100KX, M100V
- Grate Load Class: Class C
- Application: Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External
Description

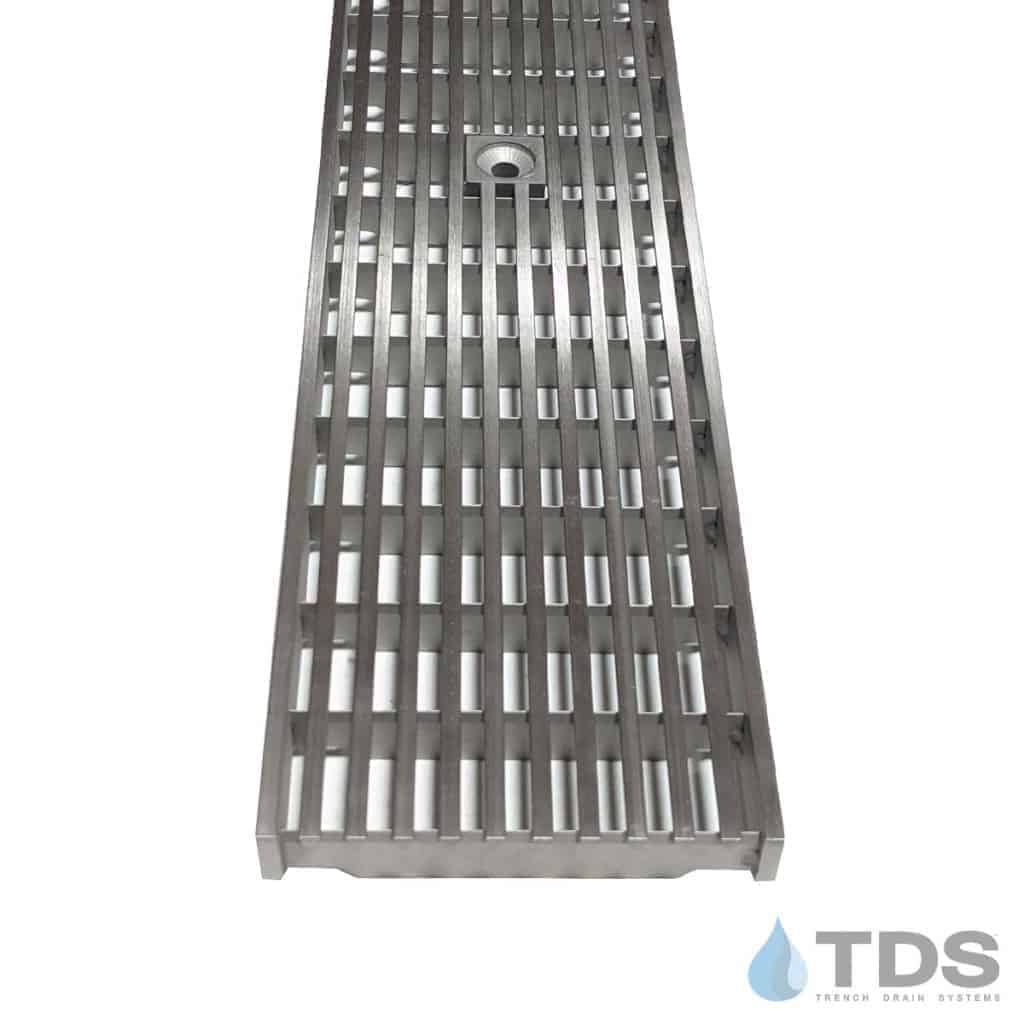

TDS 438 & 439 Reinforced Stainless Steel Wedge Wire Grate is saltwater-grade 316L steel and is ADA-compliant. This grate maintains a Load Class C rating that is ideal for corrosive environments such as pools, spas, kennels, zoos, breweries, wineries, and food processing facilities.
Salt Water Grade
For use with ULMA, MEArin, ABT, and other metric trench drain systems
Actual Dimensions (439): 122mm (4.80") wide x 500mm(19.66") long x 19.05mm (.75") thick
Actual Dimensions (438): 122mm (4.80") wide x 1M (39.3") long x 19.05mm (.75") thick
Reinforced Stainless Steel Wedge Wire 438 & 439 Specification Sheet
Locking device sold separately:
- The LD100X-1 locking device is compatible with the ULMA U100, D100, and HYDROPLUS channel systems.
- The LD100MX-1 locking device is compatible with the ULMA M100 Series
- The LD100X-1CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
