TDS SS0642F Hold-Down Device for SS600 Fiberglass Grates
TDS SS0642F Hold-Down Device for SS600 Fiberglass Grates
Additional Information
- Grate Height: 1.50"
- Weight: 1.0 lb
- Grate Material / Color / Finish: Stainless Steel 304
- Manufacturer: TDS (Trench Drain Systems)
- System: SS0600
- Application: Chemical Processing, Food Processing, General Purpose Drainage - Interior
Description

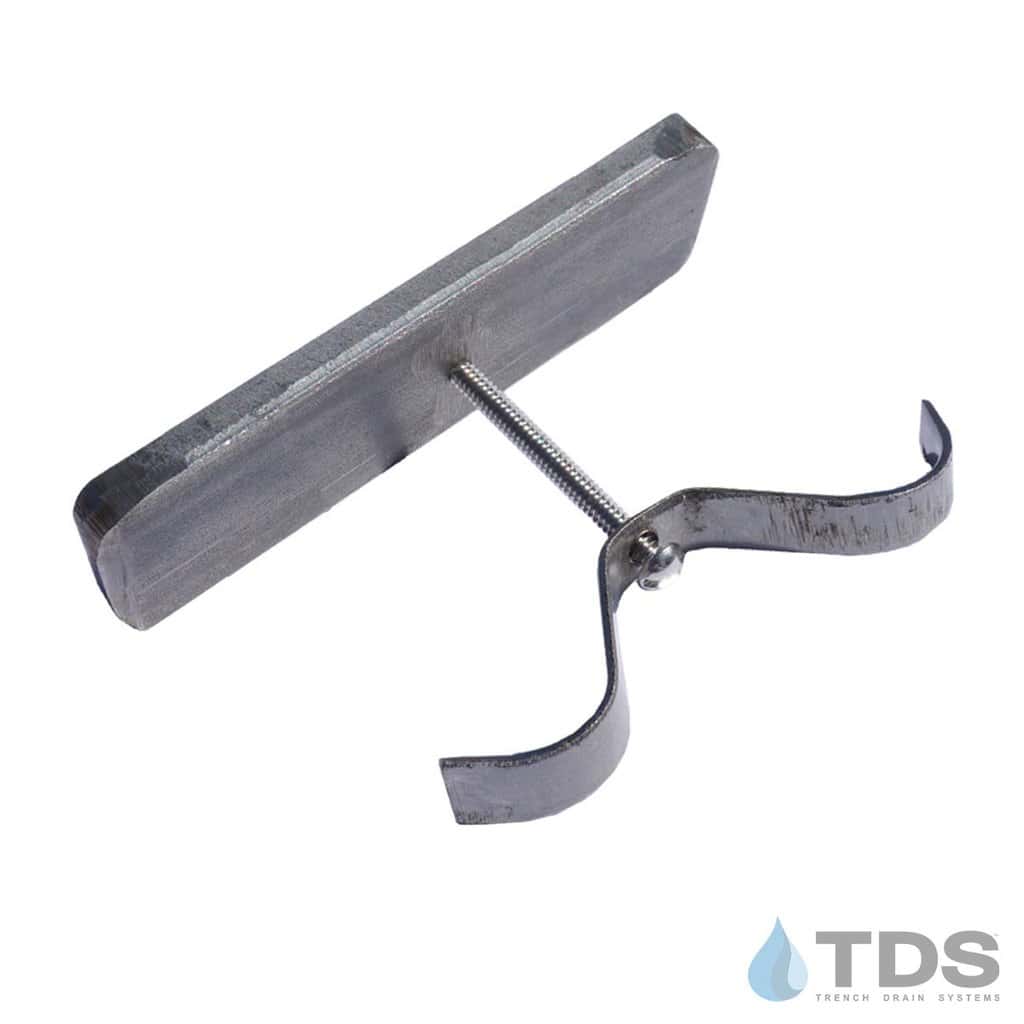

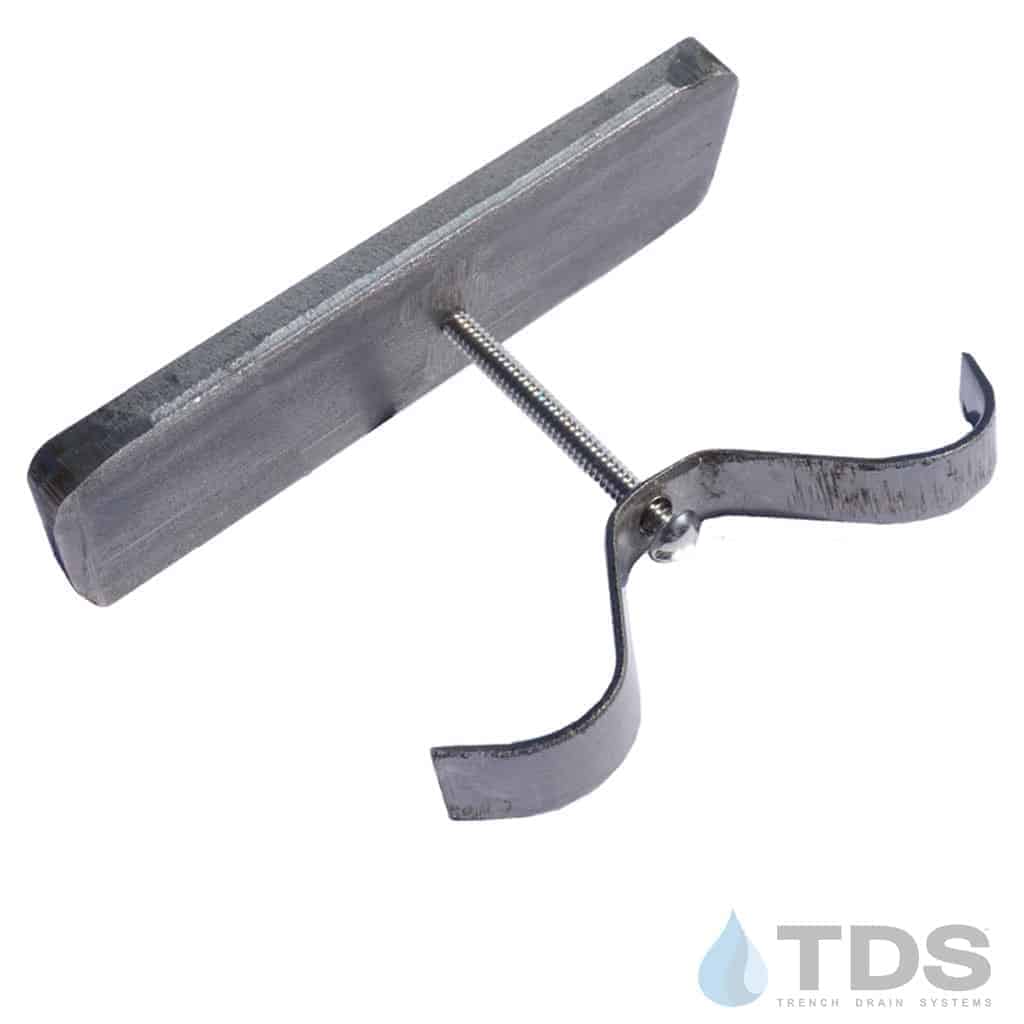

Each locking device includes:
a Round Head Screw
a Butterfly Clip
a Lock Bar
TDS SS600 series Locking device for Fiberglass Grates. Part # SS0642F
Each locking device includes:
a 6-32 x1 1/2" Round Head Screw
a Butterfly Clip
a Lock Bar that measures 3/4" x 3 3/4"
Designed to fit SS600 System Grates:
- FG0644H 24" Vinyl Ester Fiberglass bar grating with 3/8" spacing
- FG0644 H 48" Vinyl Ester Fiberglass bar grating with 3/8" spacing
- FG0644SPH 24" Vinyl Ester Fiberglass bar grating with 5/8" spacing
- FG0644SP 48" Vinyl Ester Fiberglass bar grating with 5/8" spacing
Grates need to be locked in place in situations where there's a possibility they will be driven over, preventing the grates from hopping. It also prevents debris from working in between the grates and channels which can ultimately damage the grates.
Specification Sheet for SS0642F
