ULMA 497 / PE100KCBM Class B ADA Compliant Mesh HDPE 123mm x 500mm Grate
ULMA 497 / PE100KCBM Class B ADA Compliant Mesh HDPE 123mm x 500mm Grate
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 4.81" for ULMA
- Grate Height: 0.75"
- Weight: 2.0 lb
- Grate Material / Color / Finish: Plastic/HDPE - Black
- Manufacturer: ULMA
- System: ABT Polydrain, ACO K100, ACO KS100, D100, HYDROPLUS, HYDROPLUS MINI, M100K, M100KX, U100K, U100KX, M100V
- Grate Load Class: Class B
- Application: Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
Large project? Request a Quote

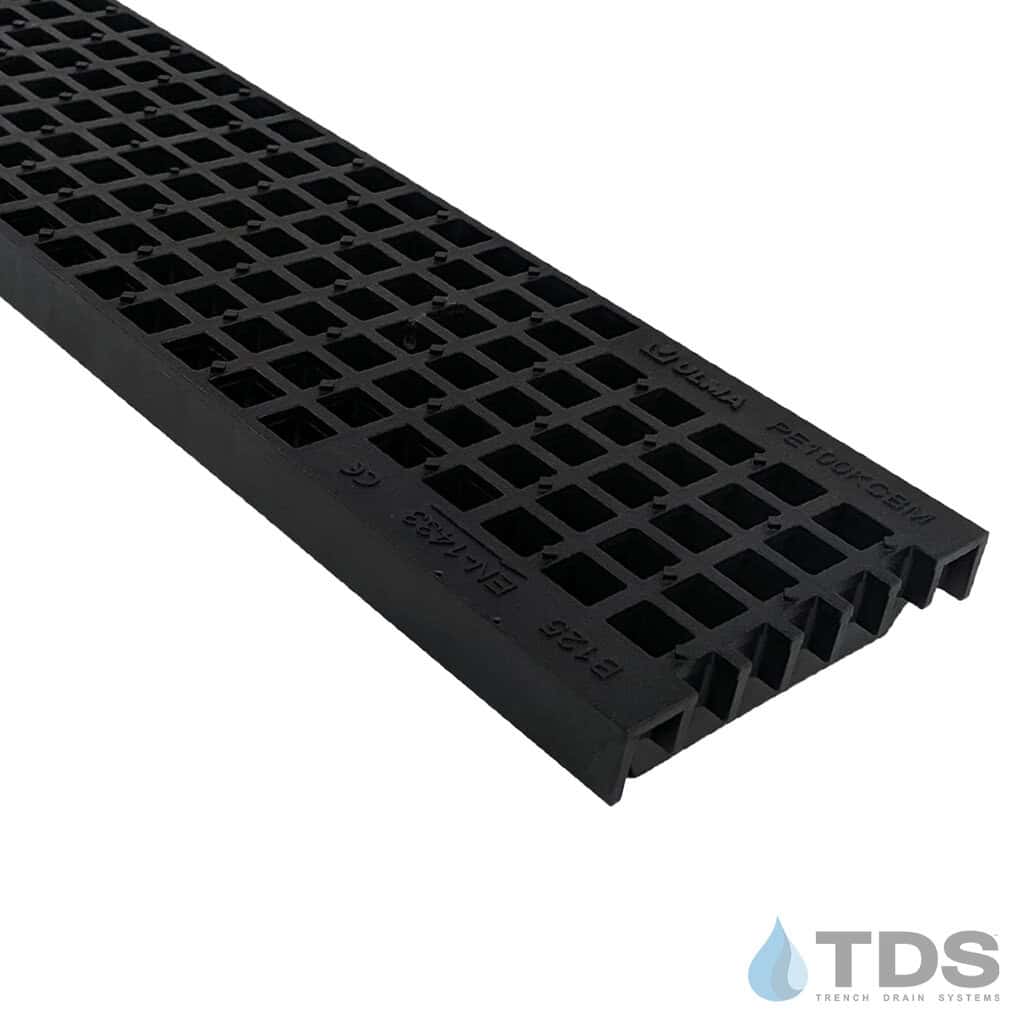

The ULMA Mesh design Polypropylene grate (ULMA Number PE100KCBM) fits your ULMA or MEArin channels. This grate is 123mm wide x 497mm in length x 20mm thick (19.685in x 4.84in x 0.787in). Two grates are required for each one meter channel. This grating has a load class B rating and complies to ADA standards and is Non-Slip.
Locking device sold separately.
- The LD100X-1 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
- The LD100MX-1 locking device is compatible with the ULMA M100 Series
- The LD100X-1CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
ULMA/MEArin 497 ADA Mesh Polypropylene Mesh Grate Specification Sheet
