PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 9.00" for ULMA MV+200
- Grate Height: 0.75"
- Weight: 15.0 lb
- Grate Material / Color / Finish: Ductile/Cast Iron - Raw
- System: MultiV+100, MultiV+200D, MV+200K, MV+200KX
- Channel Frame / Edging: Edging - Ductile Iron, Edging - Galvanized, Edging - Stainless
- Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Transportation
Description

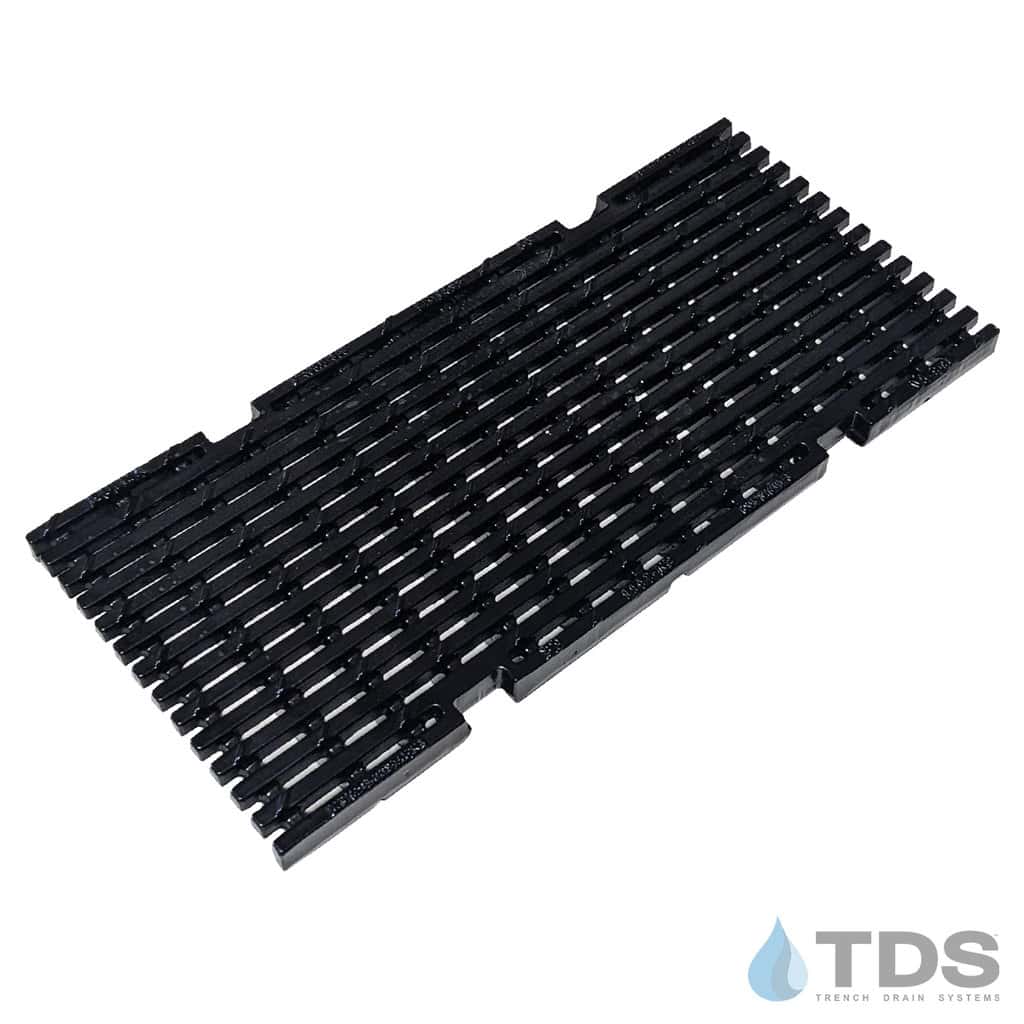

ULMA 678 (FNLHX200RGDEM) transverse slotted heelproof ductile iron grate is measured at 277mm x 498mm and follows Load Class D400, EN1433 standard rating. This Non-slip slotted grate is made with 45° grooves and ridges to help direct water and includes a boltless Rapidlock system often found in the MultiV+200 trench drain systems. It is suitable for a variety of applications, including parking lots, commercial, and pedestrian traffic areas.

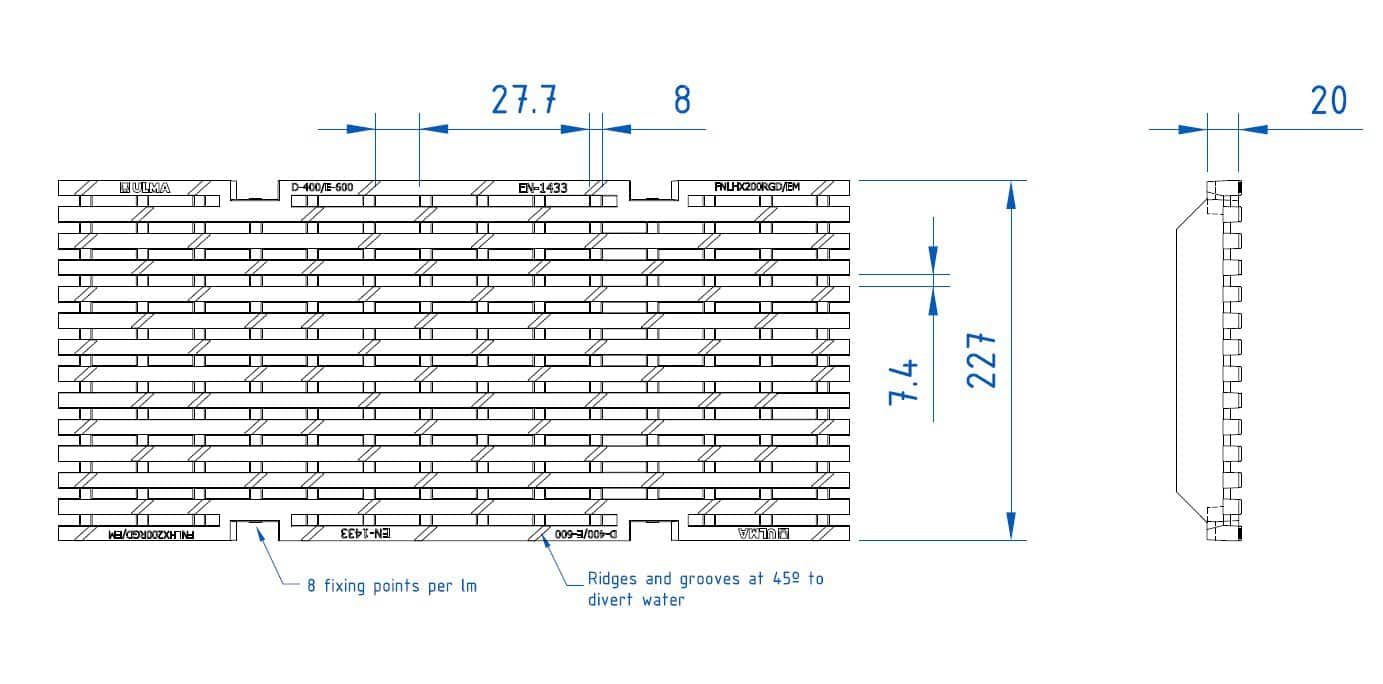

Actual Dimensions: 8.93″ [227 mm] x 19.60″ [498 mm] x .78″ [20 mm]
Water Flow Area: 503 cm²/lm
Specification Sheet for ULMA 678 / FNLHX200RGD/EM
Designed to fit: MultiV+ (100/150/200)
