ULMA Mesh Heelproof Galvanized Grate Class B
ULMA Mesh Heelproof Galvanized Grate Class B

Additional Information
- Grate Width: 4.81" for ULMA
- Grate Height: 0.75"
- Weight: 13.0 lb
- Grate Material / Color / Finish: Galvanized Steel
- Manufacturer: ULMA
- System: ABT Polydrain, ACO K100, ACO KS100, D100, HYDROPLUS, HYDROPLUS MINI, M100K, M100KX, U100K, U100KX, M100V
- Grate Load Class: Class B
- Application: Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External
Description

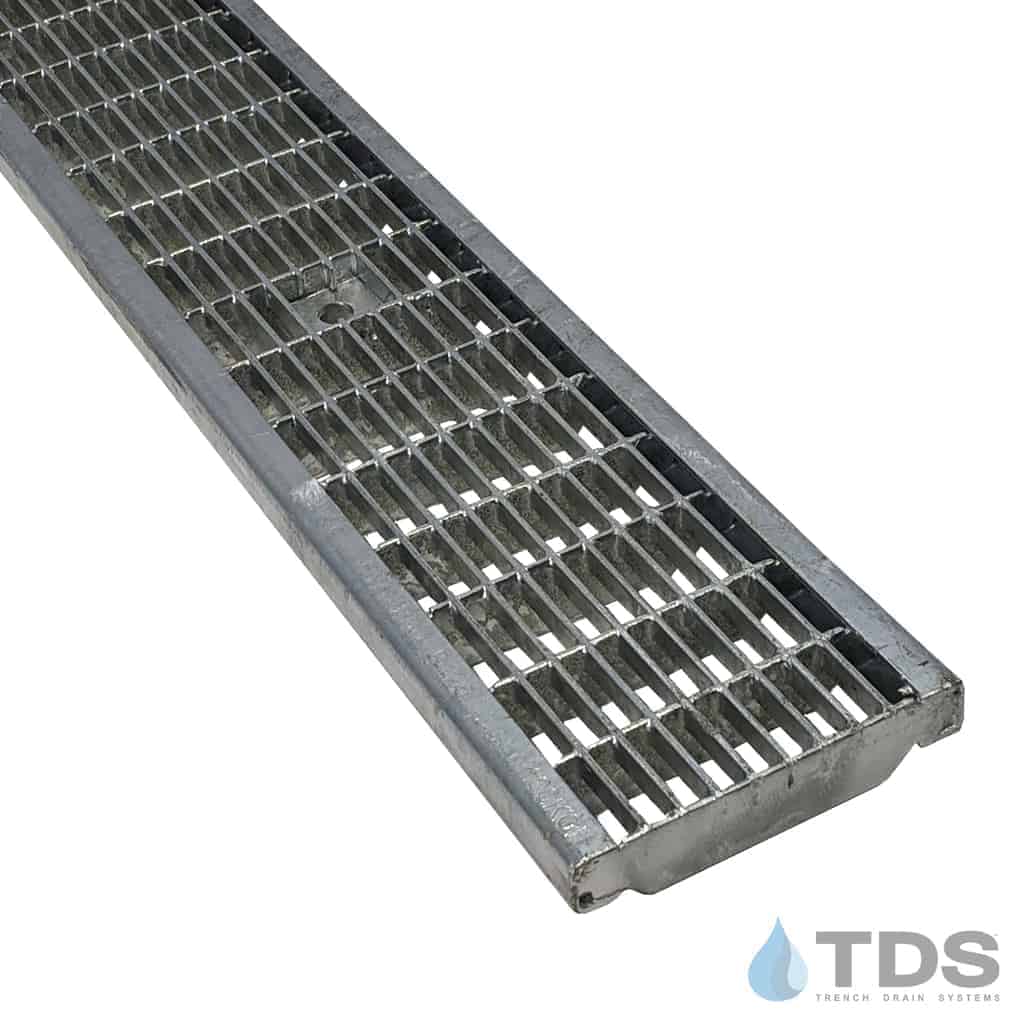

The ULMA 406 / GEHX100KCB & 407 / GEHX100KCBM is a non-slip galvanized steel mesh grating that maintains a Load Class B rating and is ideal for municipal or light vehicular traffic areas.
Actual Dimensions (407): 122mm (4.8 in) x 500mm (19.66 in) x 20mm (0.78 in)
Actual Dimensions (406): 122mm (4.8 in) x 1M (39.32 in) x 20mm (0.78 in)
406/407 Grate Specification Sheet
Locking device sold separately:
- The LD100X-1 locking device is compatible with the ULMA U100, D100, and HYDROPLUS channel systems.
- The LD100MX-1 locking device is compatible with the ULMA M Series channel systems.
