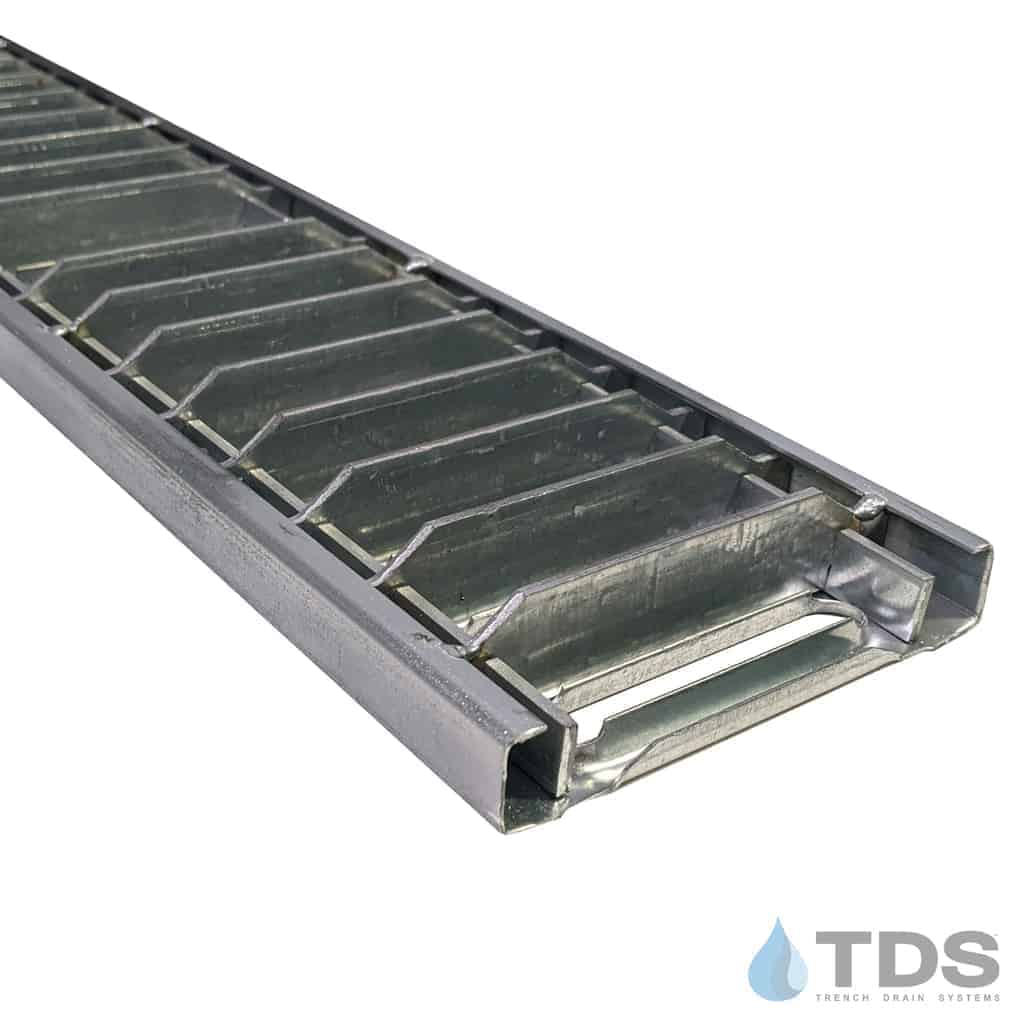

ULMA Reinforced Stainless Steel Slotted Grate Class C
ULMA Reinforced Stainless Steel Slotted Grate Class C
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 4.81" for ULMA
- Grate Height: 0.75"
- Weight: 5.0 lb
- Grate Material / Color / Finish: Stainless Steel 304
- Manufacturer: ULMA
- System: ABT Polydrain, ACO K100, ACO KS100, D100, HYDROPLUS, HYDROPLUS MINI, M100K, M100KX, U100K, U100KX, M100V
- Grate Load Class: Class C
- Application: Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
TDS 454 / IN100KCC & 455 / IN100KCCM non-slip reinforced slotted stainless grate maintains a Load Class C rating and is ideal for medium-duty vehicular traffic applications.
For use with ULMA, MEArin, ABT, and other metric trench drain systems
Actual Dimensions (455): 124mm (4.80") wide x 500mm(19.66") long x 19.05mm (.75") thick
Actual Dimensions (454): 124mm (4.80") wide x 1M (39.3") long x 19.05mm (.75") thick
Galvanized Steel 454 / 455 Specification Sheet
Locking device sold separately.
- LD100X-2 locking device is compatible with the ULMA U100, D100, and HYDROPLUS channel systems.
-
LD100MX-2 locking device is compatible with the ULMA M series systems.
