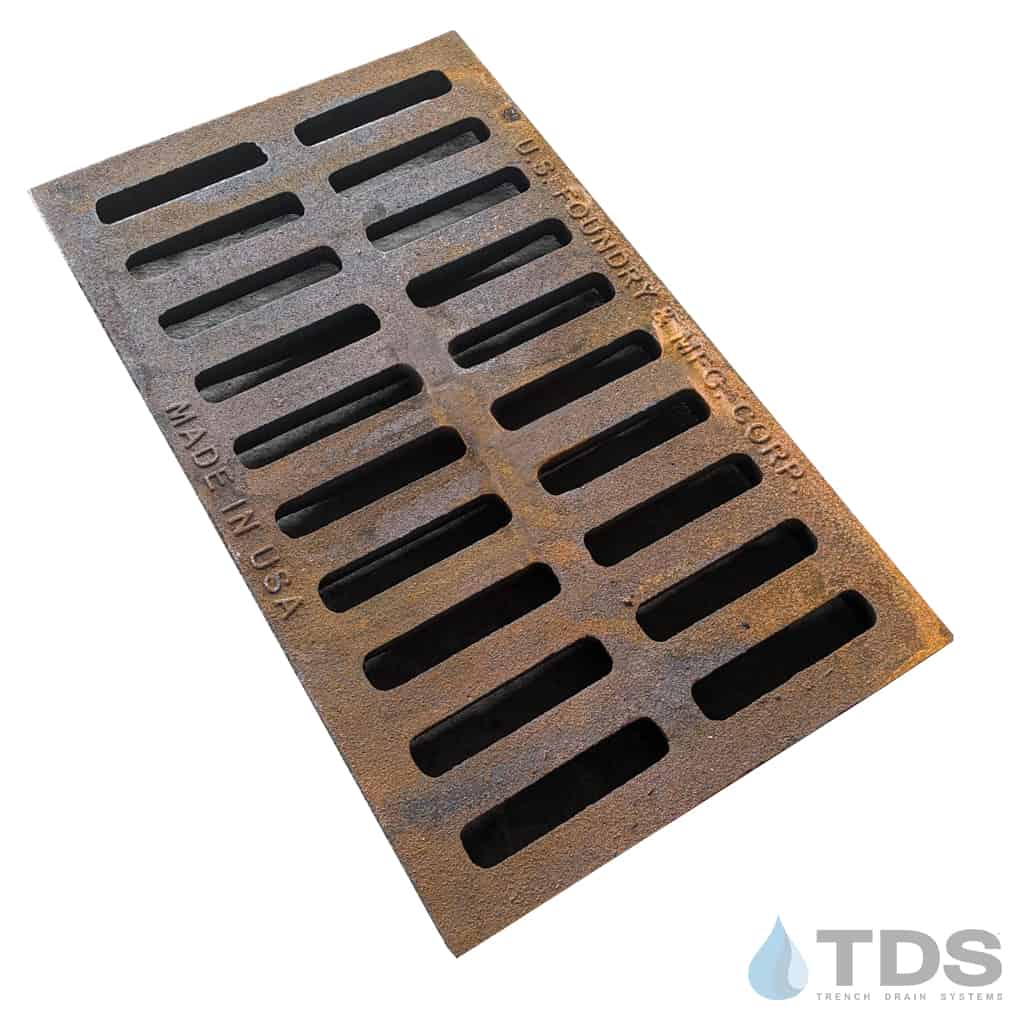

US Foundry 6454 Heavy Duty Cast Iron 14" x 24" x 1.5" Grate
US Foundry 6454 Heavy Duty Cast Iron 14" x 24" x 1.5" Grate
Additional Information
- Grate Width: 14.00"
- Grate Height: 1.50"
- Weight: 65.0 lb
- Grate Material / Color / Finish: Ductile/Cast Iron - Raw
- Manufacturer: USF
- System: Foundry
- Grate Load Class: Class D
- Channel Material: Form Your Own OR Site Built
- Channel Frame / Edging: Frame - Galvanized, Frame - Stainless, Frame - Fibergrate - EZ, Frame - Fibergrate - WYE, Frame - Ductile Iron
- Application: Residential, General Purpose Drainage - External, Transportation
Description
Heavy Duty Grate
Alternate Product is Available: DL-J4223-01
Large project? Request a Quote
NOTE: Due to the weight of this product, expect higher than normal shipping costs.
Cast iron heavy-duty grate. Grate openings are 1-1/8" wide. Bottom ' leveling feet' can be ground for proper height adjustment. Each individual grate weighs 66 lbs each.
Class 35B
Made in the USA
Specification sheet for 6454
Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
