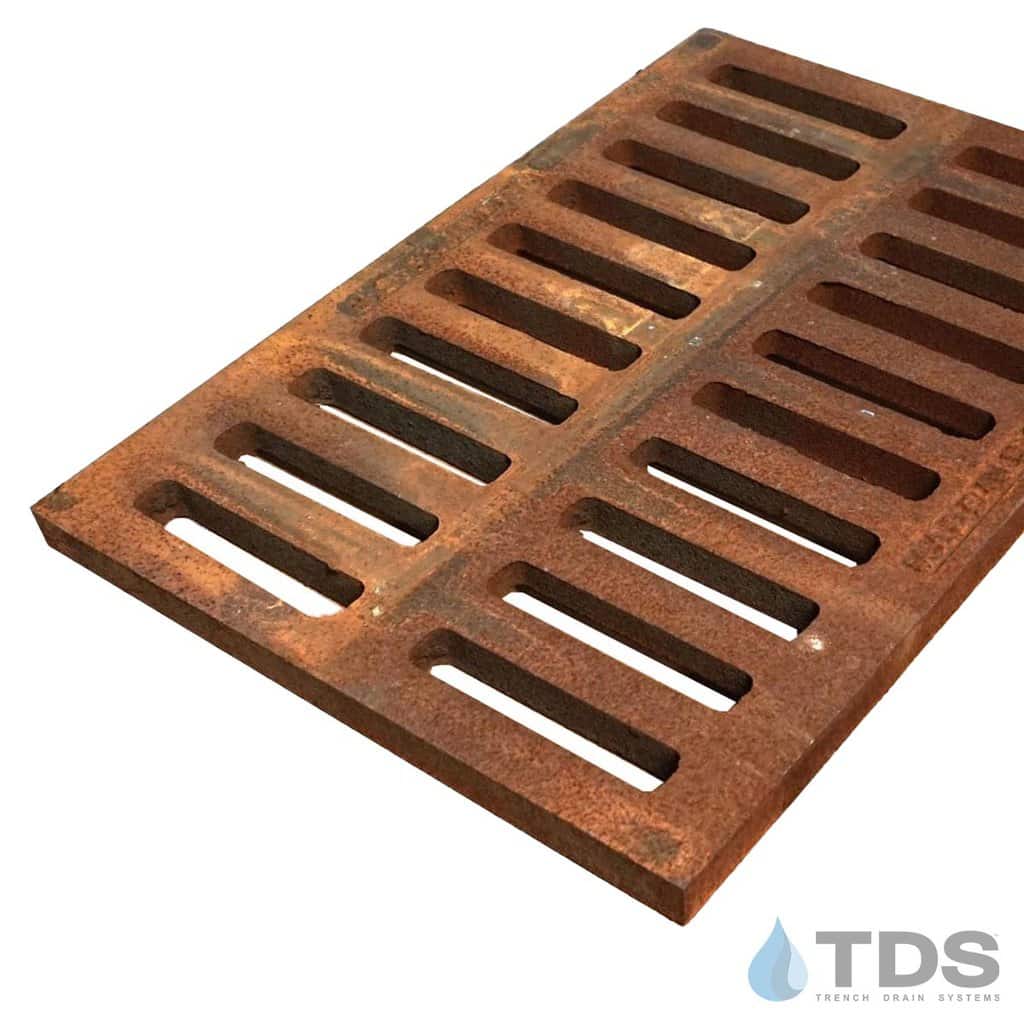

US Foundry 6455 Heavy Duty Slotted Cast Iron 17" x 24" x 1-1/2" Grate
US Foundry 6455 Heavy Duty Slotted Cast Iron 17" x 24" x 1-1/2" Grate

Additional Information
- Grate Width: 17.00"
- Grate Height: 1.50"
- Weight: 81.0 lb
- Grate Material / Color / Finish: Ductile/Cast Iron - Raw
- Manufacturer: USF
- System: Foundry
- Grate Load Class: Class D
- Channel Material: Form Your Own OR Site Built
- Channel Frame / Edging: Frame - Galvanized, Frame - Stainless, Frame - Fibergrate - EZ, Frame - Fibergrate - WYE, Frame - Ductile Iron
- Application: Residential, General Purpose Drainage - External, Transportation
Description
USF 6455 Heavy-duty cast-iron grate measures 17" x 24" x 1-1/2" (includes leveling pads) and weighs approximately 82 lbs. Grate openings/flow areas measure 1 x 6".
(Grate is 1-1/2" high, including the leveling feet that can be ground to suit height requirements)

Looking to create a trench drain system with these grates? We have a variety of rails/frames to make the build easier.
Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
