V7385 Heavy Duty Slotted Cast Iron 17" x 24" x 2" Grate ADA Compliant

V7385 Heavy Duty Slotted Cast Iron 17" x 24" x 2" Grate ADA Compliant

  • V7385 Slotted Heavy Duty Grate
  • V7385 Spec Sheet
1 2

Trench Drain Grates

EJ 6903M2-1

$516.86 USD
$516.86 USD
Sale Sold out
View full details

Additional Information

  • Grate Width: 12.00"
  • Grate Height: 2.00"
  • Product Type: Channel Grate, Grate
  • Grate Material / Color / Finish: Ductile/Cast Iron - Raw
  • Manufacturer: EJCO (East Jordan)
  • System: Foundry
  • Grate Load Class: Class D
  • Grate Pattern: Slotted
  • Grate Pattern Style: Slotted
  • Channel Material: Cast in Place / EPS Foam, Form Your Own OR Site Built
  • Channel Frame / Edging: Frame - Galvanized, Frame - Stainless, Frame - Fibergrate - EZ, Frame - Fibergrate - WYE, Frame - Ductile Iron
  • Application: Residential, General Purpose Drainage - External, Transportation

Description

Heavy Duty

Cast Iron Grate

If ordering only Qty.1 or 2 grates, please contact Customer Service to process your order for cheaper shipping options (Ground option vs. Freight).

Gray Iron heavy duty grate that measures 17" x 24" x 2". Grate openings/flow areas measure 3/8".

Each individual grate weighs 50 lbs each. Heel Proof and ADA compliant.

Made in the USA

Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

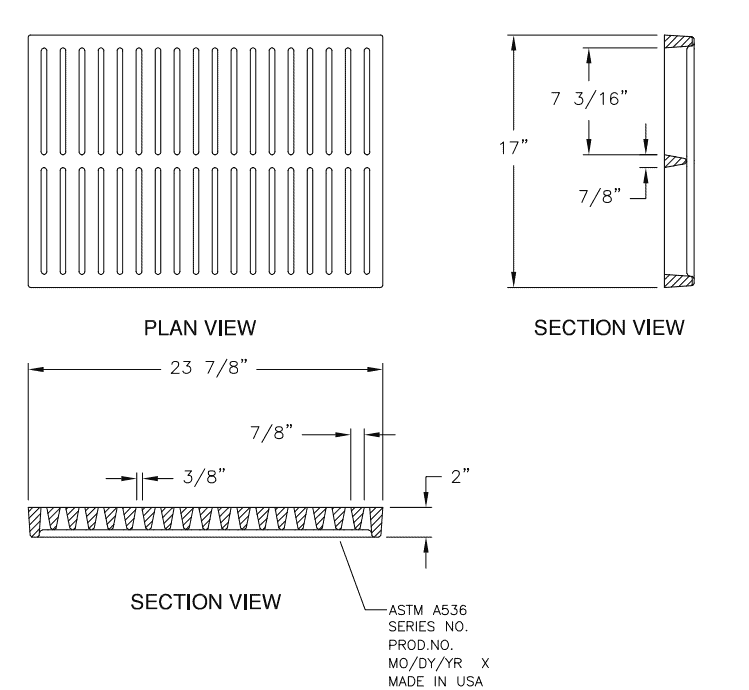

V7385 Spec Sheet



Made in America
