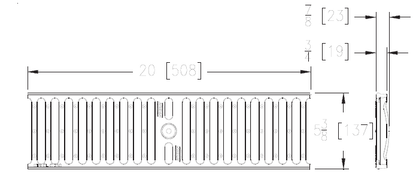

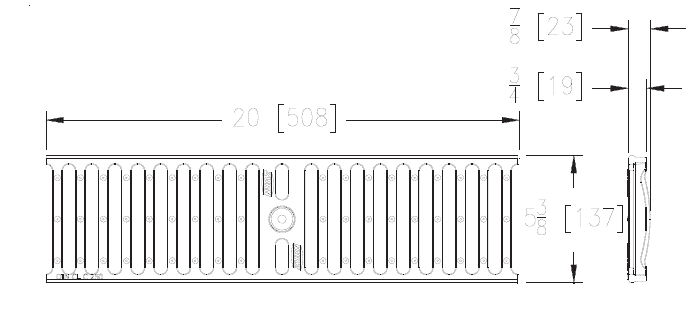

Zurn P6-DGC Class C H-20 Slotted Ductile Iron 6" x 20" Grate
Zurn P6-DGC Class C H-20 Slotted Ductile Iron 6" x 20" Grate
Additional Information
- Grate Width: 5.38" for Zurn Z886
- Grate Height: 0.75"
- Weight: 8.0 lb
- Grate Material / Color / Finish: Ductile/Cast Iron - Raw
- Manufacturer: Zurn
- System: Z806, Z883, Z886
- Grate Load Class: Class C
- Application: Residential, General Purpose Drainage - External
Description
Large project? Request a Quote
The Zurn® P6-DGC, Ductile Iron grate, with a open area of 18.57 square inches per linear foot, DIN Rating of C, ANSI Rating of Heavy Duty. Made to fit the Zurn® Z806, Z886, Z886-ST, Z890 and Zurn Z883 trench drain systems..
