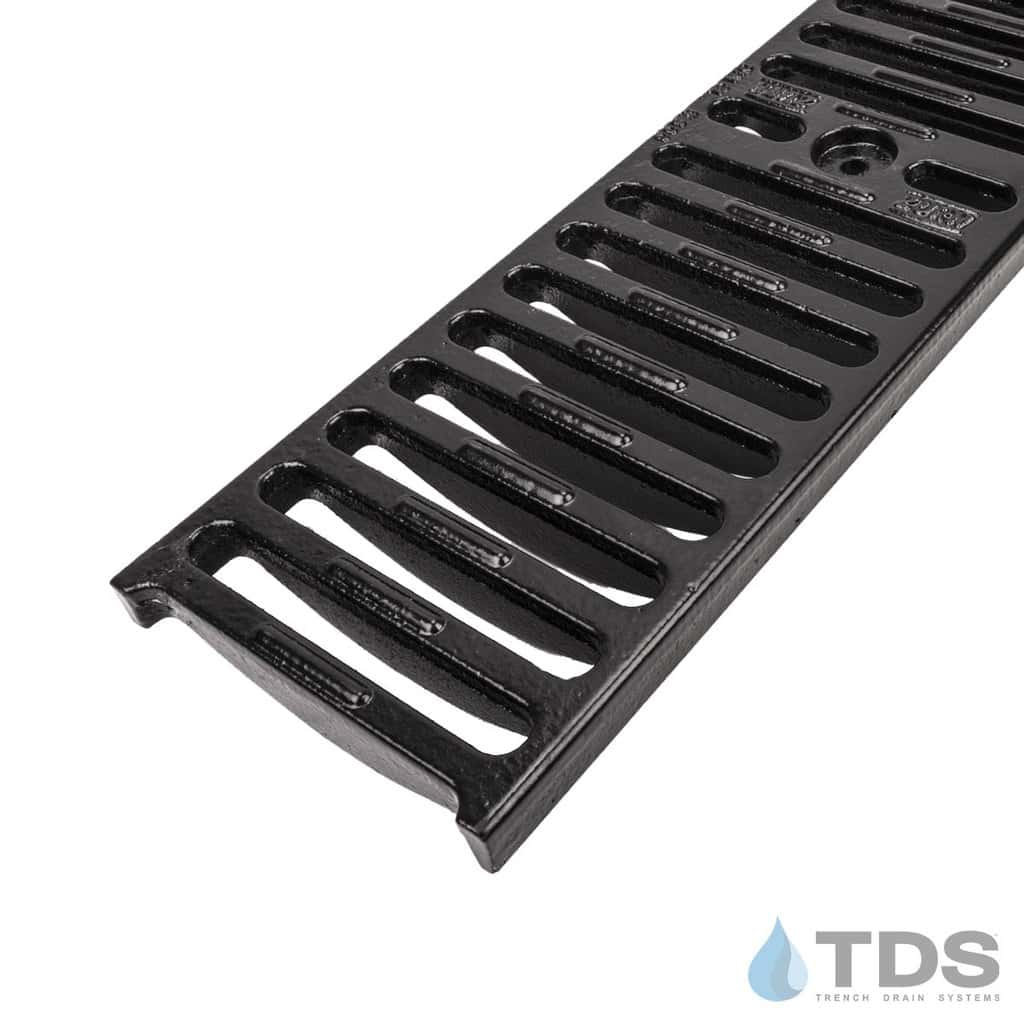

Zurn P6-DGE-USA Class E Slotted Ductile Iron 6" x 20" Grate
Zurn P6-DGE-USA Class E Slotted Ductile Iron 6" x 20" Grate
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 5.38" for Zurn Z886
- Grate Height: 0.75"
- Weight: 11.0 lb
- Grate Material / Color / Finish: Ductile/Cast Iron - Raw
- Manufacturer: Zurn
- System: Z806, Z883, Z886
- Grate Load Class: Class E
- Application: Residential, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
Actual Dimensions: 0.75″ [19mm] x 5.38″ [137mm] x 20.00″ [508mm]
Large project? Request a Quote
The Zurn P6-DGE-USA, Ductile Iron Slotted grate, with a open area of 28.2 square inches per linear foot, DIN Rating of E, ANSI Rating of Special Duty. H-20 FAA Load rating. Made to fit the Zurn Z806, Z886, Z886-ST, Z890 and Zurn Z883 trench drain systems. Slot hole width 0.5"
