Zurn P6-GHPD 5-3/8" Galvanized Ductile Iron Slotted Grate
Zurn P6-GHPD 5-3/8" Galvanized Ductile Iron Slotted Grate
Additional Information
- Grate Width: 5.38" for Zurn Z886
- Grate Height: 0.75"
- Weight: 11.0 lb
- Grate Material / Color / Finish: Galvanized Steel, Ductile/Cast Iron - Raw
- Manufacturer: Zurn
- System: Z806, Z883, Z886
- Grate Load Class: Class B
- Application: Residential, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
Actual Dimensions: 0.75″ [19mm] x 5.38″ [137mm] x 20.00″ [508mm]
Class B Rated, ADA Compliant, Heel-Proof
Large project? Request a Quote

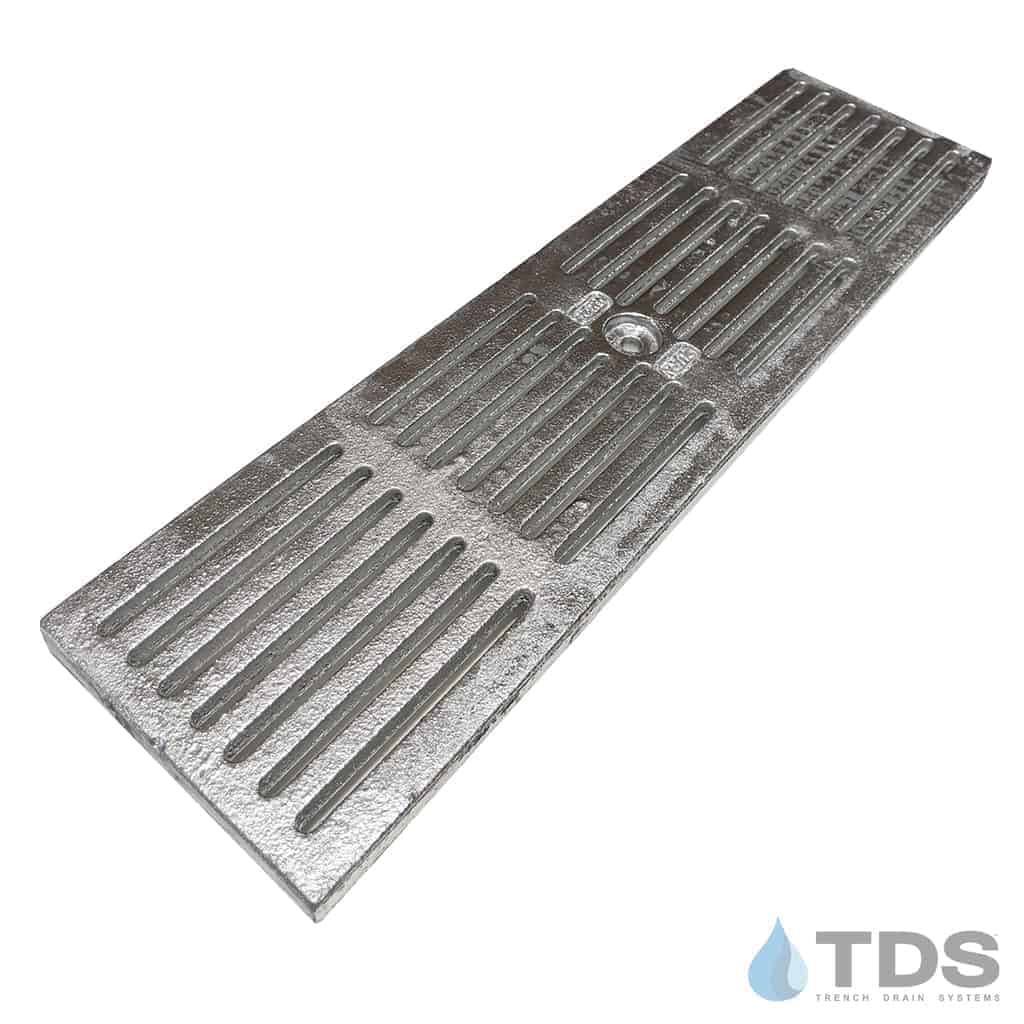

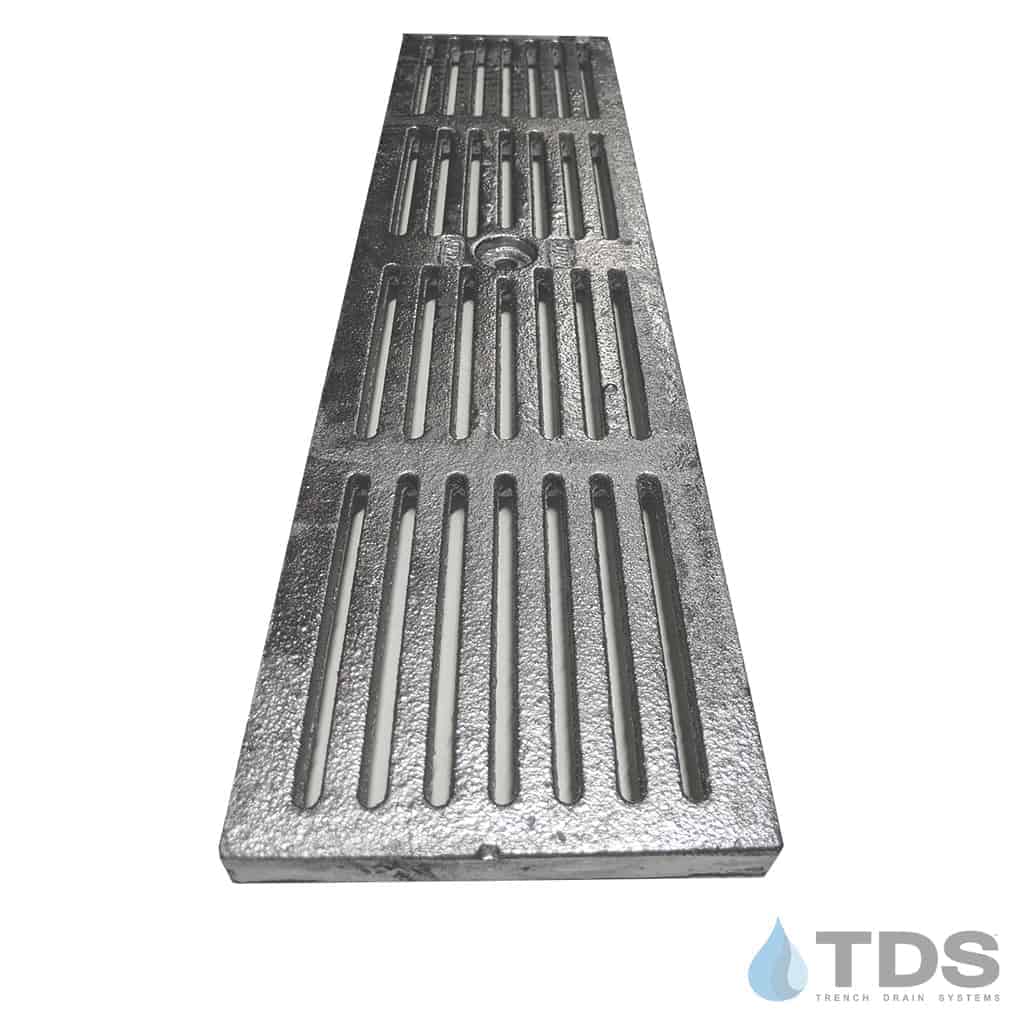

The P6-GHPD is a class B 6" galvanized ductile iron heel-proof slotted grate.
20” [508mm] X 5-3/8” [137mm] Galvanized ductile Iron heel-proof slotted grate weighing 6.3 lbs per linear
foot [9.5kg/m]. The grate has an open area of 17.0 in² per linear foot [361cm²/m]. Grate conforms to DIN
rating of B, ANSI rating of Medium-Duty, ADA compliant* and ASTM A536 Grade 80-55-06. Galvanized (hot
dip) conforms to ASTM A123.
ZURN P6-GHPD-USA Specification Sheet
