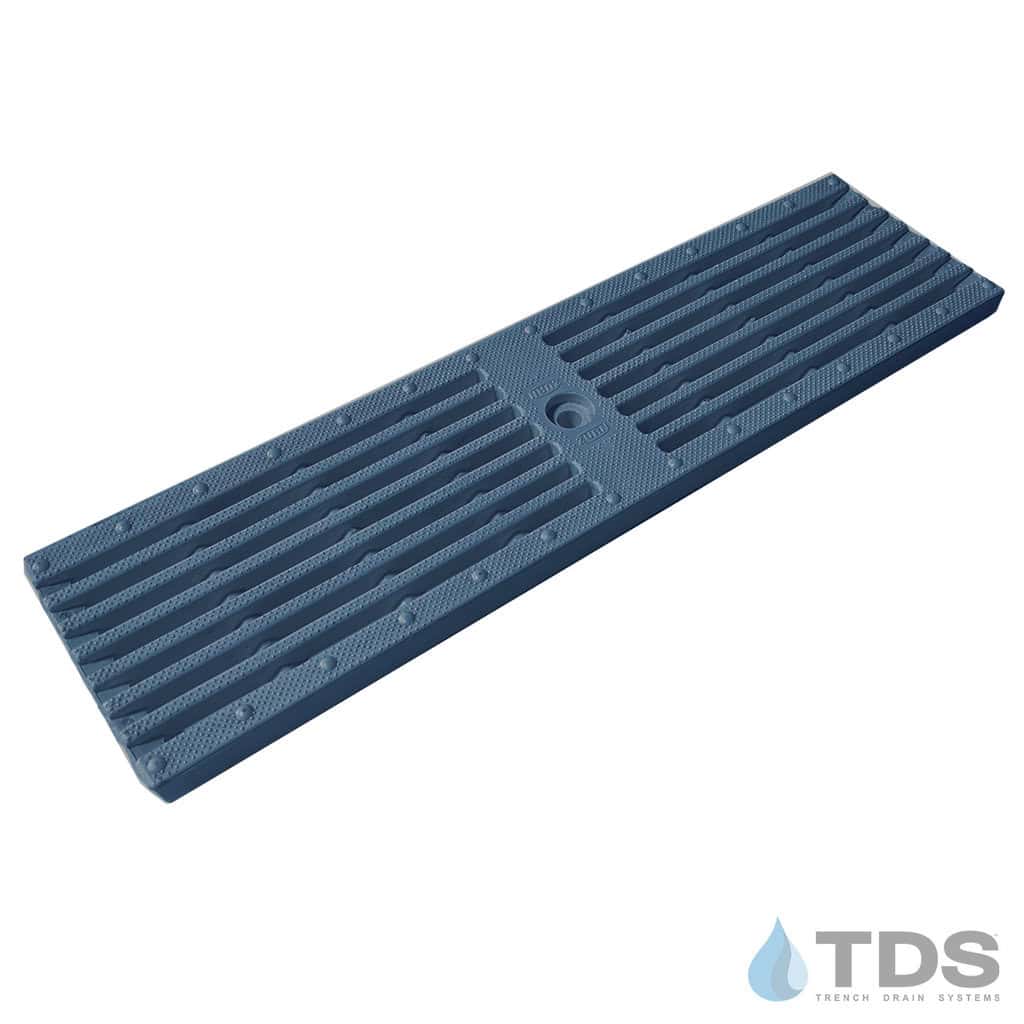

Zurn P6-HPP-BLUE Class A Linear Slotted HDPE 6" x 20" Grate
Zurn P6-HPP-BLUE Class A Linear Slotted HDPE 6" x 20" Grate
Additional Information
- Grate Width: 5.38" for Zurn Z886
- Grate Height: 0.75"
- Weight: 2.0 lb
- Grate Material / Color / Finish: Plastic/HDPE - Blue
- Manufacturer: Zurn
- System: Z806, Z883, Z886
- Grate Load Class: Class A
- Application: Residential, General Purpose Drainage - Interior, General Purpose Drainage - External
Description
Zurn Blue Grate – Class A, Linear Slotted, Heel-Proof, ADA Compliant, HDPE
Large project? Request a Quote
The ZURN® P6-HPP-BLUE grates are 5.375" wide x 20" long and made of High Density Polyethylene (HDPE). This linear slotted grate is Heel-proof, ADA Compliant, and rated for Load Class A, ANSI Rating Light-Duty, ideal for pedestrian traffic.
Open area of 17.4 in²/ft
Slot Width: 0.25 in
Weighs 0.9 lbs per linear foot
- Durable construction stands up to tough environments
- Made from high-density polyethylene
- Recommended for light-duty traffic areas
- Grate is ADA compliant
- Fits Zurn system Z886 (4 per channel), Zurn Z883 (2 per channel), Zurn Z806 (6 per channel)
