Bronze Age™ BARS 3" Wide Grate for NDS Mini Channel
Bronze Age™ BARS 3" Wide Grate for NDS Mini Channel
PRODUCT DOCUMENTATION
Additional Information
- Grate Width: 2.75" for NDS Mini Channel
- Grate Height: 0.38"
- Weight: 1.42 lb

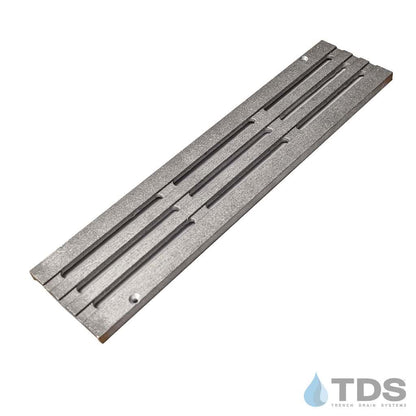

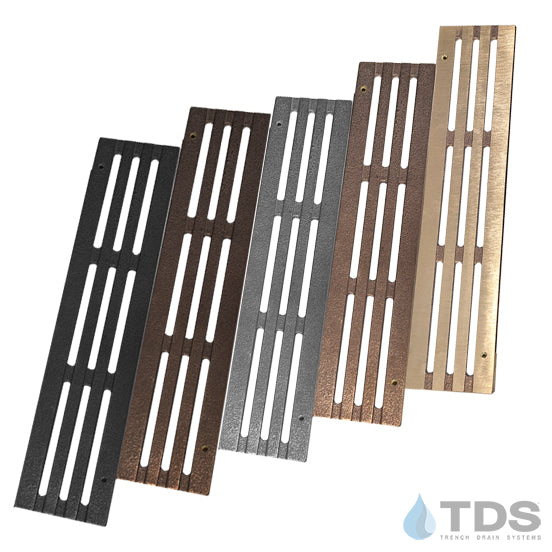

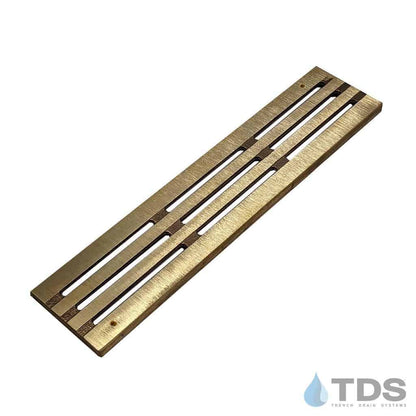

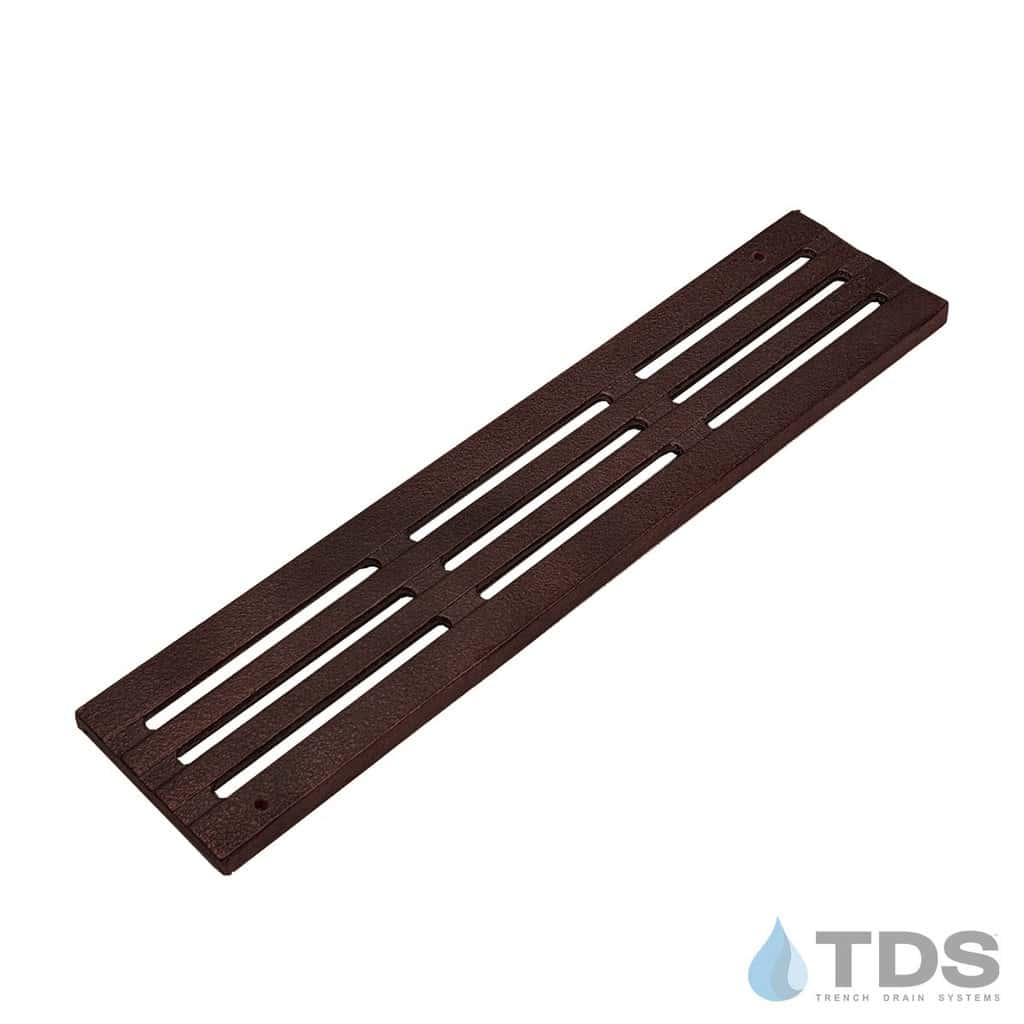

- Grate Material / Color / Finish: Aluminum, Bronze - Brushed, Bronze - Natural, Ductile/Cast Iron - Baked on Oil Finish, Ductile/Cast Iron - Raw
- Manufacturer: TDS (Trench Drain Systems)
- System: Mini Channel
- Grate Load Class: Class A, Class B
- Grate Pattern: Bars
- Grate Pattern Style: Patriotic, Slotted
- Channel Material: Plastic - (PP, HDPE, PE) - Sand, Plastic - (PP, HDPE, PE) - Gray
- Channel Frame / Edging: Frame - None, Edging - None
- Application: Residential, Decorative, Sports Complex - Recreational
Description

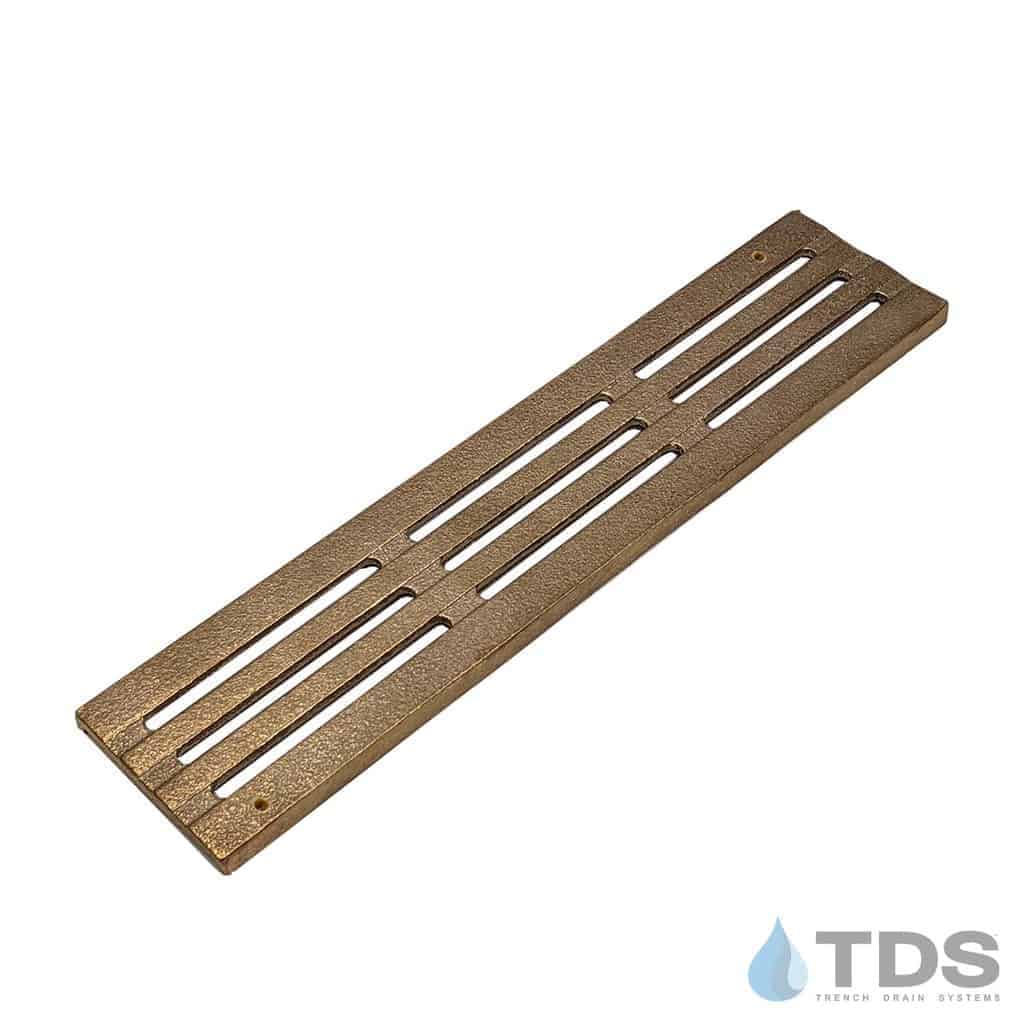

This decorative bronze grate with a natural finish is made in the USA and measures 2.72" in width and a length of 12". The Bars grate features a transverse slotted pattern. Made in the USA. With the ADA and heel-friendly design, this grate is perfect for any low-traffic areas such as pedestrians, bicycles, and golf carts. Compatible with the NDS Mini Channel and the TDS MAX Mini drainage system.
Each grate includes 2 holes for securing to the channel using NDS-529B fasteners (sold separately)

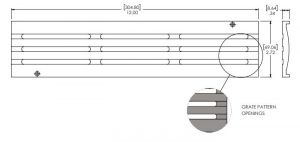

Bar Grate Specification Sheet | Class A or B
The Bars pattern is designed to either stand-alone or be married up with the TDS exclusive Stars pattern.
This grate has a Load Class rating of A but can be rated for a B Load Class if properly installed; see specification sheet for details.
