Bronze Age STAR 3" Wide Grate for NDS Mini Channel
Bronze Age STAR 3" Wide Grate for NDS Mini Channel

Additional Information
- Grate Width: 2.75" for NDS Mini Channel
- Grate Height: 0.38"
- Weight: 1.42 lb
- Grate Material / Color / Finish: Aluminum, Bronze - Brushed, Bronze - Natural, Ductile/Cast Iron - Baked on Oil Finish, Ductile/Cast Iron - Raw
- Manufacturer: TDS (Trench Drain Systems)
- System: Mini Channel
- Grate Load Class: Class A, Class B
- Channel Material: Plastic - (PP, HDPE, PE) - Sand, Plastic - (PP, HDPE, PE) - Gray
- Application: Residential, Decorative, Sports Complex - Recreational, General Purpose Drainage - Interior, General Purpose Drainage - External
Description

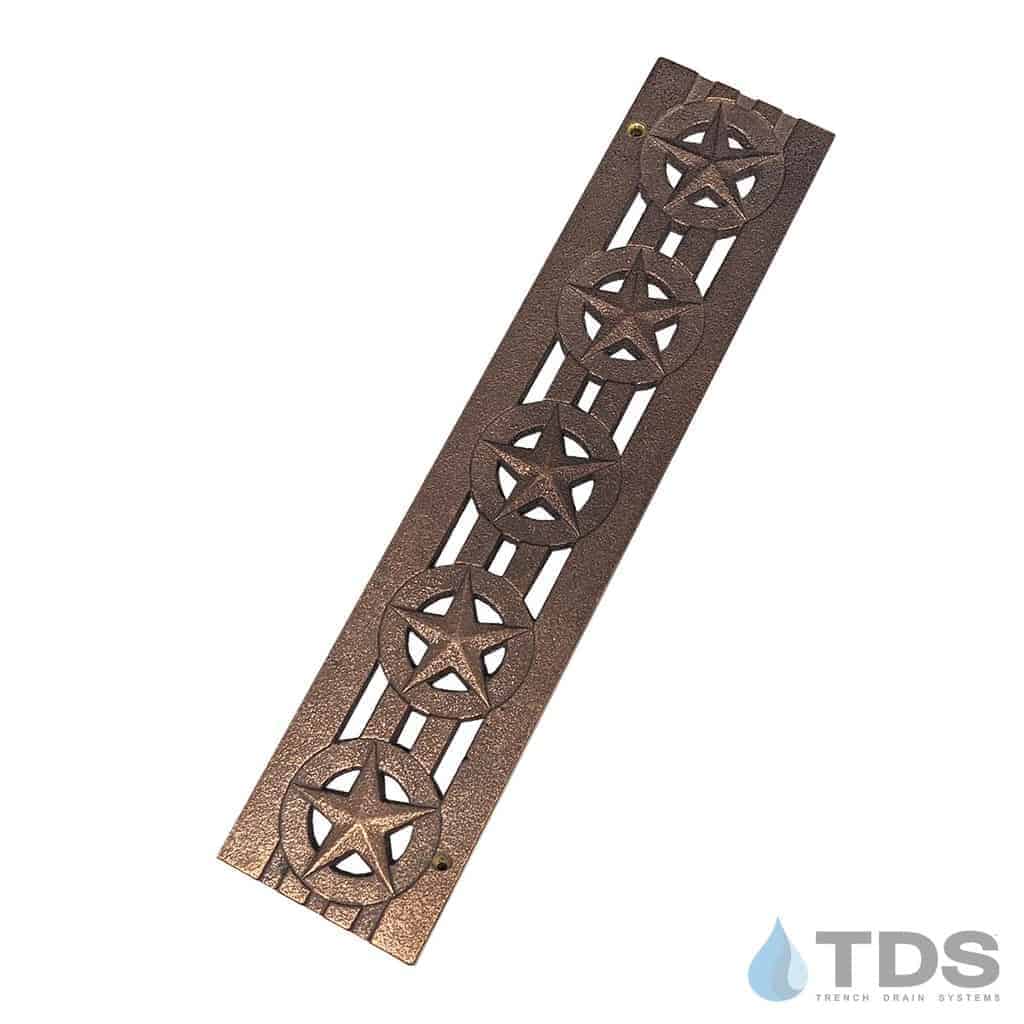

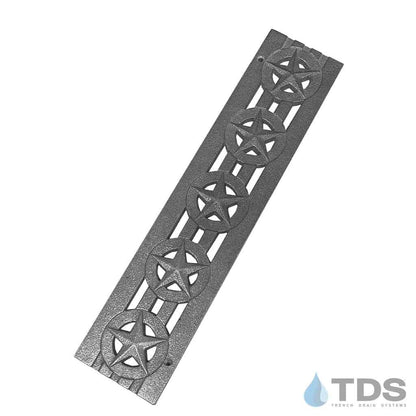

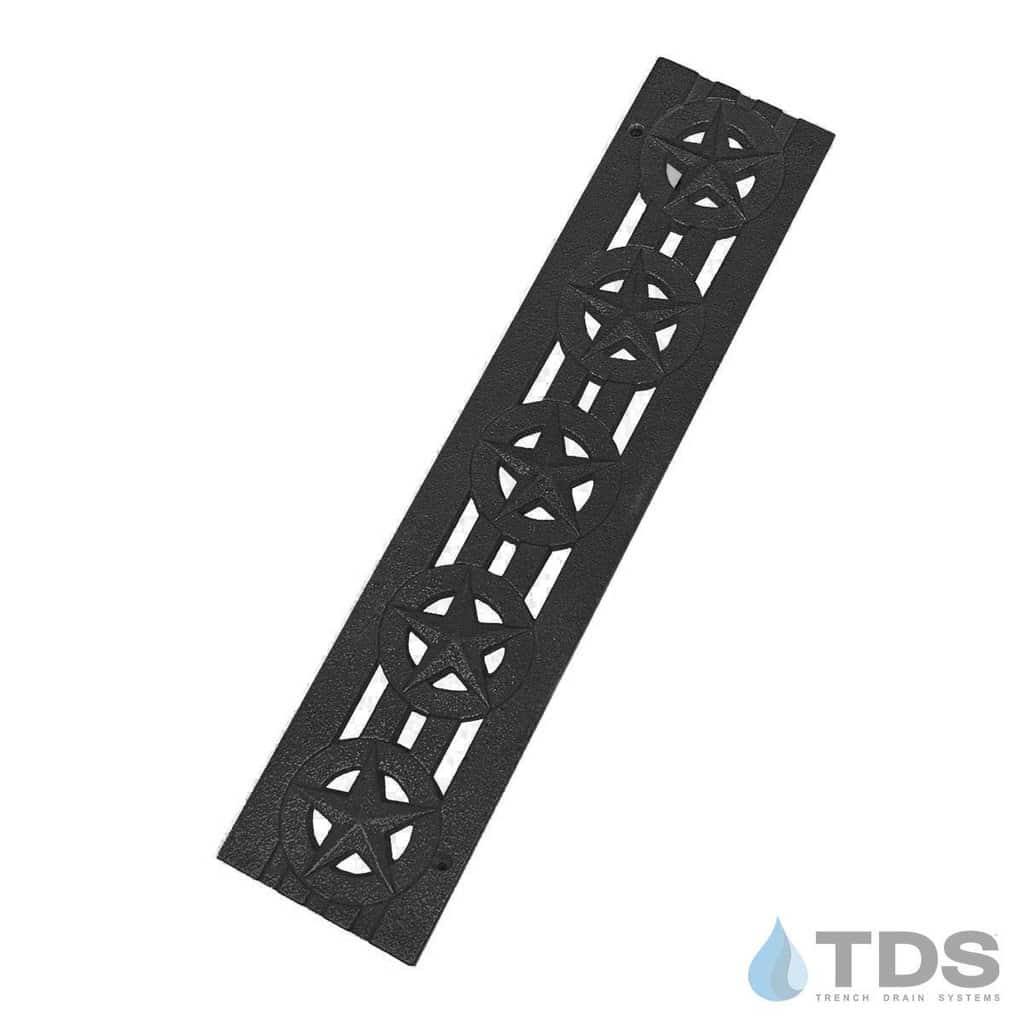

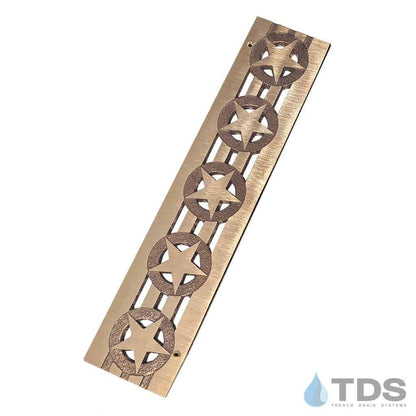

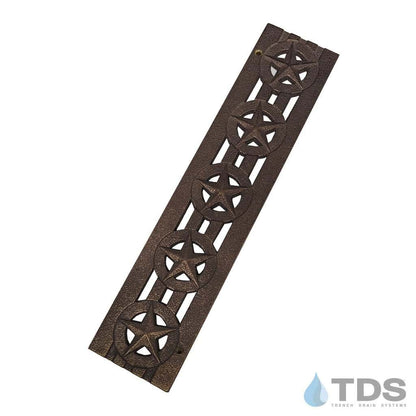

Decorative Bronze Age™ grates in the Stars pattern are made to fit your NDS® 3″ Mini-Channel and the TDS Max Mini™ trench drain. A Trench Drain Systems exclusive product, these unique grates are available in bronze (natural or brushed), aluminum, raw-ductile iron, or with a baked-on oil finish. The Stars grate features a combination of perforated and transverse slotted patterns.
The Stars pattern is designed to either stand-alone or be married up with the TDS exclusive Bars pattern. This grate is ADA-compliant, perfect for pedestrians, bicycles, and golf carts.
Each grate includes 2 holes for securing to the channel using NDS-529B fasteners (sold separately)
Stars decorative grates match the Bars grate pattern for an alternative look!
This grate has a Load Class rating of A but can be rated for a B Load Class if properly installed; see the specification sheet for details.

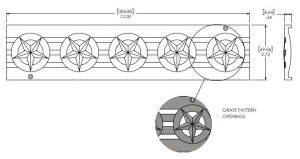

BA-STAR-0312 Specification Sheet

Large project? Request a Quote
